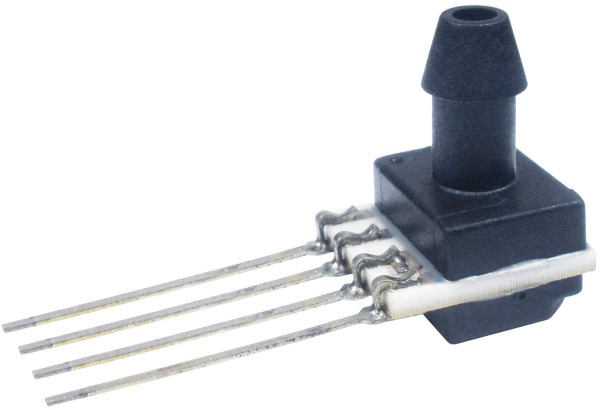

Honeywell HSCSANN015PAAA5 High Accuracy Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability. It features a ratiometric analog or digital output, calibrated and temperature compensated using an on-board ASIC. Suitable for absolute, gage, or differential pressure measurements in non-corrosive environments, these sensors are ideal for industrial automation, medical devices, and HVAC systems. Their small size, low power consumption, and wide pressure range make them versatile for various applications.
Honeywell HSCSANN015PAAA5 High Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Stability: Minimizes system calibration needs and improves system performance
- TEB: Total Error Band (TEB) provides the sensor’s true performance over a compensated range
- Burst Pressure: High burst pressures promote system reliability
- Working Pressure: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1
- Power Consumption: Less than 10 mW, typ.
- Media Compatibility: Compatible with non-corrosive, non-ionic gases and liquids (above 40 mbar)
Buy the HSCSANN015PAAA5 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell HSCSANN015PAAA5 pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCSANN015PAAA5?
You can click on the BUY or RFQ button to purchase HSCSANN015PAAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCSANN015PAAA5?
You can download the HSCSANN015PAAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCSANN015PAAA5?
Honeywell
