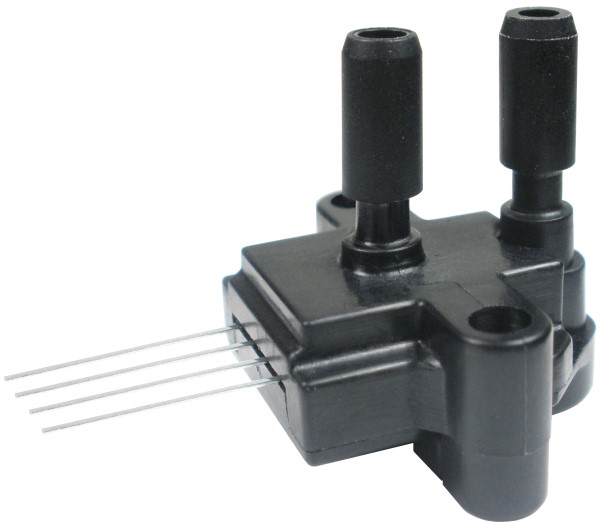

Honeywell HSCSNBD001NDAA5 Board Mount Pressure Sensor
The Honeywell TruStability HSC Series pressure sensors are designed for high accuracy and stability in a compact board mount package. Utilizing piezoresistive silicon technology, these sensors provide ratiometric analog or digital output, fully calibrated and temperature compensated for exceptional performance. They are suitable for a wide range of industrial applications including HVAC systems, medical devices, and process control, where precise pressure measurement is critical. The sensors' robust design and low power consumption contribute to reliable and efficient system operation.
Honeywell HSCSNBD001NDAA5 Board Mount Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Output Type: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 Level 1
- Burst Pressure: High
- Working Pressure Ranges: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Stability: Minimizes system calibration needs, improves system performance, and supports system uptime
- TEB: Provides the sensor’s true performance over a compensated range of 0 °C to 50 °C [32 °F to 122 °F]
Buy the HSCSNBD001NDAA5 HONEYWELL Board Mount Pressure Sensor | myMectronic
Purchase the Honeywell HSCSNBD001NDAA5 pressure sensor securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCSNBD001NDAA5?
You can click on the BUY or RFQ button to purchase HSCSNBD001NDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCSNBD001NDAA5?
You can download the HSCSNBD001NDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCSNBD001NDAA5?
Honeywell
