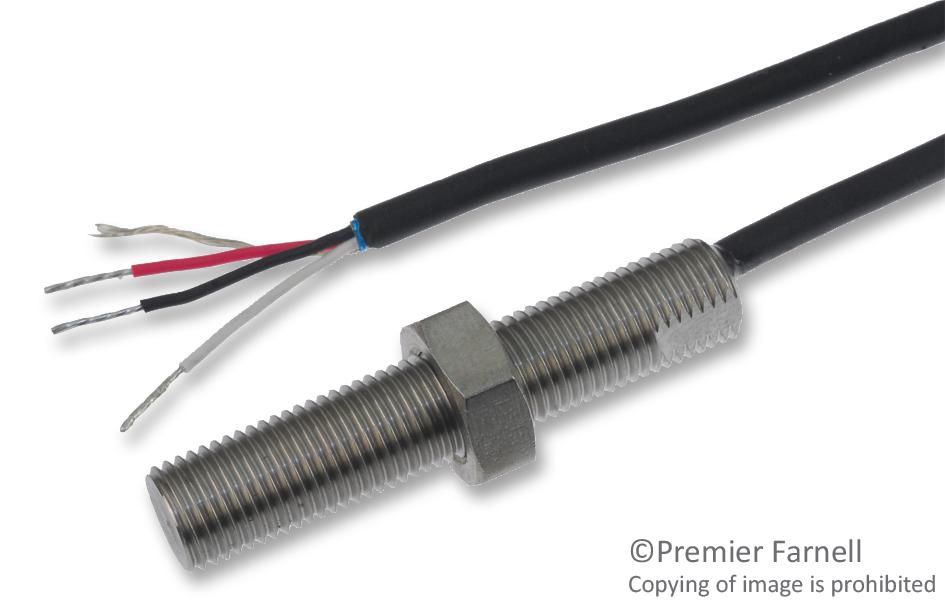

Honeywell LCZ26030 Hall Effect Zero Speed Sensor
The LCZ Series Hall-effect Zero Speed Sensors offer a durable, cost-effective solution for harsh environments, featuring stainless steel housing, simple installation, and no rotational orientation needed. Available in multiple diameters and lengths, these sensors are suitable for industrial process control, factory automation, and rotary applications like pumps, mixers, fans, and gear reducers. They provide reliable digital output, low power consumption, and IP68 sealing, making them ideal for demanding industrial uses with temperature ranges from -40°C to 125°C and high shock and vibration resistance.
Honeywell LCZ26030 Hall Effect Zero Speed Sensor Specifications:
- Supply voltage: 26-45 VDC
- Supply current: 20 mA max
- Output sinking current: 20 mA, max voltage drop: 0.4 V
- Voltage high: up to 30 VDC, voltage low: 0.4 V
- Operating frequency: up to 15 kHz
- Output impedance: 47 to 5.3 kΩ
- Dielectric strength: 200 Vac, leakage <2 mA
- Operation gap: specific to target and gap curve
- Shock resistance: 50 G, 11 ms
- Vibration resistance: 15 G from 10 Hz to 2000 Hz
- Housing material: stainless steel
- Sealing: IP68
- Temperature range: -40°C to 125°C
- Mounting thread options: 3/8-24UNF-2A, 5/8-18UNF-2A
- Dimensions: 50.8 mm or 76.2 mm length, with respective mounting and thread sizes
- Weight: 36-68 grams depending on model
Buy the Buy Honeywell Hall-effect Zero Speed Sensor Part Number LCZ26030 Online
Discover the highly reliable Honeywell Hall-effect Zero Speed Sensor, designed for industrial environments. Featuring stainless steel housing, IP68 sealing, and no orientation requirement, this sensor ensures precise, maintenance-free operation in demanding conditions. Available in multiple lengths and thread types, it provides digital output for accurate speed and position sensing of rotating equipment like pumps, fans, gear reducers, and mixers. Its durable construction and temperature range from -40°C to 125°C make it ideal for factory automation and process control applications, ensuring long-term performance and safety.
Buy Honeywell LCZ26030 now and experience unmatched reliability and performance for industrial rotary speed detection and automation.
Frequently Asked Questions
Where can I buy Honeywell LCZ26030?
You can click on the BUY or RFQ button to purchase LCZ26030 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part LCZ26030?
You can download the LCZ26030 datasheet or visit the Honeywell website for support.
Who is the manufacturer of LCZ26030?
Honeywell
