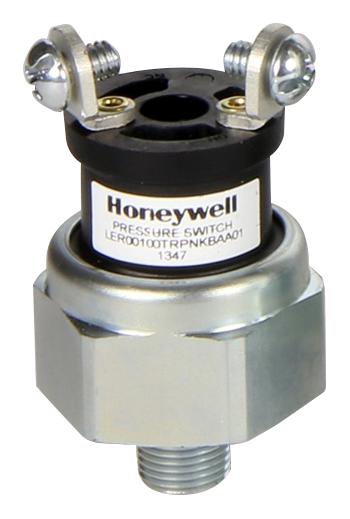

Honeywell LEC00100TBYNKBAA01 Pressure Switch
Honeywell Pressure Switches are electromechanical gauge pressure on/off switches designed for durability and reliability in demanding environments. Utilizing a diaphragm or sealed piston and precompressed spring, these switches activate electrical contacts based on system media pressure. They are commonly used in industrial applications such as CNC machines, compressors, and water pumps, as well as in transportation equipment like agricultural machinery and heavy-duty trucks. Features include a wide operating temperature range, high proof and burst pressure ratings, and various electrical termination options to suit diverse system requirements.
Honeywell LEC00100TBYNKBAA01 Pressure Switch Specifications:
- Life cycle rating: up to 2 million
- IP rating: IP67
- Operating temperature range: -40 °C to 120 °C [-40 °F to 248 °F]
- Proof pressure (High Pressure): 10000 psi [689 bar]
- Proof pressure (Low Pressure): 500 psi [34,47 bar]
- Burst pressure (High Pressure): 20000 psi [1379 bar]
- Burst pressure (Low Pressure): 750 psi (for 3.5 psi to 22 psi), 1250 psi (> 22 psi)
- Switching point accuracy: up to ±2 %
- Media connection: multiple ports available
- Pressure ports: 1/4-18 NPT,1/8-27 NPT,1/2-20 UNF,1/8-27 PTF,M12 × 1.5, M14 × 1.5, M14 × 1.5, M18 × 1.5, 9/16-18 UNF, 3/4-16 UNF, 7/8-14 UNF G1/8 BSPP, 7/16-20 UNF, R1/8 BSPT, M10 × 1.0, R1/2 BSPT, G1/4 BSPP, R1/4 BSPT
- Termination options: AA = Spade Terminals, BA = Screw Terminals, CA = Deutsch DT04-3P-E005, DA = Amp Super Seal, EA = 10-inch Cable, FA = 10-inch Cable w/Deutsch DT04-3P-E005, GA = 10-inch Cable w/Amp Super Seal, HA = 10-inch Cable w/Metripack, JA = 10-inch Cable w/Din43650-C, KA = 10-inch Cable w/M12x1, LA = 10-inch Cable w/Packard Weatherpack, MA = 10-inch Cable w/Deutsch DT04-2P-E005, NA = 3-inch Cable w/Packard 2P Tower Connector, PA = 2.75-inch Cable w/Packard 2P Shroud Connector, RA = 4-inch Cable w/Packard 2P Shroud Connector, SA = 5.5-inch Cable w/ITT Cannon 2P Sure-Seal, TA = 8.5-inch Cable w/ITT Cannon 3P Sure-Seal, UA = 10-inch Cable - Vacuum Impregnated w/Deutsch DT06-3S-EP06, VA = 10-inch Cable - Vacuum Impregnated w/Deutsch DT04-3P-E005, WA = 4.5-inch Cable w/Blade Terminals
Buy the LEC00100TBYNKBAA01 HONEYWELL Pressure Switch | myMectronic
Purchase the Honeywell LEC00100TBYNKBAA01 Pressure Switch securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell LEC00100TBYNKBAA01?
You can click on the BUY or RFQ button to purchase LEC00100TBYNKBAA01 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part LEC00100TBYNKBAA01?
You can download the LEC00100TBYNKBAA01 datasheet or visit the Honeywell website for support.
Who is the manufacturer of LEC00100TBYNKBAA01?
Honeywell
