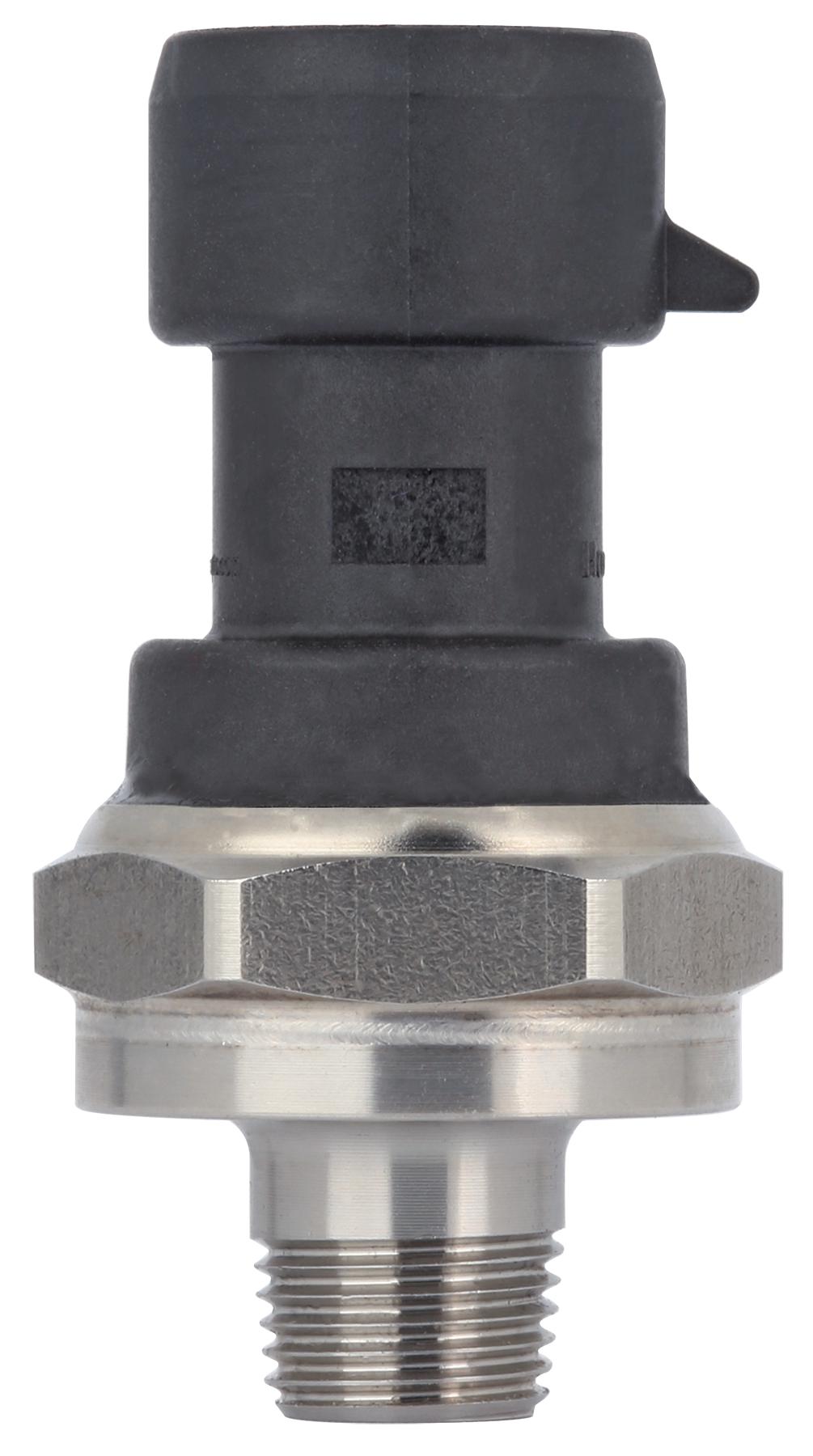

Honeywell MIPAN2XX500PSAAX Heavy Duty Pressure Transducer
The MIP Series is a rugged, media-isolated pressure transducer designed for tough environments, measuring from 1 bar to 60 bar. Constructed from stainless steel, it offers excellent durability, high accuracy of 0.15% FSS BFSL, and a wide operating temperature range of -40°C to 125°C. It provides a ratiometric 0.5 V to 4.5 V output, supporting applications in liquids and gases like water, oil, refrigerants, and gases. Certified for use with drinking water, this heavy-duty sensor ensures long-term stability, EMC immunity, and high burst pressure up to 207 bar, suitable for industrial, HVAC, medical, and process industries.
Honeywell MIPAN2XX500PSAAX Heavy Duty Pressure Transducer Specifications:
- Pressure Range: 1 bar to 60 bar (15 psi to 870 psi)
- Construction: Rugged stainless steel
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc
- Operating Temperature: -40°C to 125°C
- Total Error Band: +0.75 % FSS from -40°C to 125°C
- Accuracy: 0.15% BFSL
- Long Term Stability: +0.25 % FSS
- Burst Pressure: 207 bar (3000 psi)
- Electrical: 5.0 to 10.25 Vdc supply, 6.5 mA current
- Ingress Protection: IP67
- EMC Immunity: 100 V/m radiated immunity
- Materials: Stainless steel wetted parts, nitrile seal
- Certifications: NSF/ANSI/CAN 61, CE, RoHS, REACH
- Response Time: 1 ms
- Mechanical Mounting: Multiple port types, G1/4, NPT
- Shock & Vibration: 100 G shock, 20 G vibration
Buy the Honeywell Series MIP Pressure Sensor: 1-60 bar Model
Purchase the Honeywell MIP Series Heavy Duty Pressure Transducer online today to ensure accurate, reliable measurement in demanding environments. Designed with rugged stainless steel construction, it is perfect for industrial applications involving water, oil, gases, and refrigerants. With a broad pressure range of 1 to 60 bar, exceptional accuracy of 0.15% BFSL, and certification for drinking water, this sensor supports long-term stability, EMC immunity, and high burst pressure up to 207 bar. Easy to install, highly durable, and suitable for harsh conditions, order now for seamless integration into your system.
Get Honeywell MIP pressure transducer today—built for precision, durability, and reliable performance in tough environments.
Frequently Asked Questions
Where can I buy Honeywell MIPAN2XX500PSAAX?
You can click on the BUY or RFQ button to purchase MIPAN2XX500PSAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part MIPAN2XX500PSAAX?
You can download the MIPAN2XX500PSAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of MIPAN2XX500PSAAX?
Honeywell
