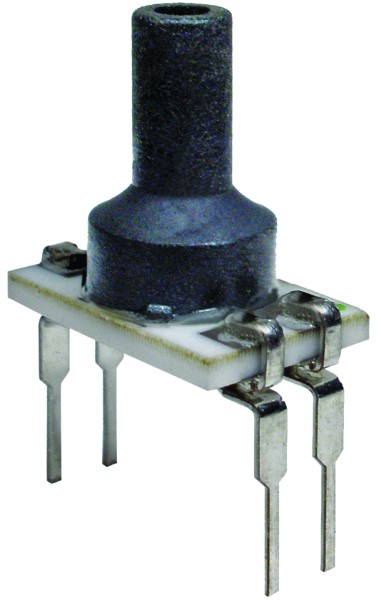

Honeywell NBPDLNN015PAUNV Uncompensated Pressure Sensor
Honeywell’s NBP Series Uncompensated/Unamplified pressure sensors provide a simple, cost-effective solution for customers requiring a basic performance, mV output, unamplified, uncompensated, high-quality, high-resolution sensor. These sensors offer infinite resolution of the pressure signal and are suitable for use with noncorrosive, non-ionic gases and liquids. The NBP Series is designed for those who want to leverage a custom algorithm for compensation, calibration, and amplification, and is ideal for medical and industrial applications.
Honeywell NBPDLNN015PAUNV Uncompensated Pressure Sensor Specifications:
- Supplyvoltage (Vsupply): {'Min': '-12.0', 'Max': '12.0', 'Unit': 'Vdc'}
- Storage temperature: {'Min': '-40', 'Max': '125', 'Unit': 'C'}
- Soldering time and temperature: 4 s max. at 250 °C [482 °F] / 15 s max. at 250 °C[482 °F]
- Accuracy: {'Value': '0.25', 'Unit': '%FSSBFSL6'}
- Inputresistance: {'Min': '2.4', 'Max': '5.5', 'Unit': 'kOhm'}
- Thermal effect on resistance(TER): {'Min': '1200', 'Max': '3200', 'Unit': 'ppm/C'}
- Humidity (non-condensing): 0 %RH to 95 %RH
- Humidity (condensing): 0 %RH to 100 %RH
- Vibration: MIL-STD-202F,Method214A, Condition 1E(15 g,10Hzto2 kHz)
- Shock: MIL-STD-202F,Method213B, Condition F(100 g, 6ms duration)
- Life: 1 million pressure cycles min.
- ESD: MIL-STD-883Method 3015.7
- Solder reflow: J-STD-020D,MSL 1,unlimited storage life
- Wetted Materials (Non-Gel Coating Option) - Covers: high temperature polyamide
- Wetted Materials (Gel Coating Option) - Covers: high temperature polyamide
- Wetted Materials (Non-Gel Coating Option) - Substrate: alumina ceramic
- Wetted Materials (Gel Coating Option) - Substrate: silicone gel
- Wetted Materials (Non-Gel Coating Option) - Adhesives: epoxy, RTV
- Wetted Materials (Gel Coating Option) - Adhesives: epoxy
- Wetted Materials (Non-Gel Coating Option) - Electronic components: ceramic, silicon, gold, glass
