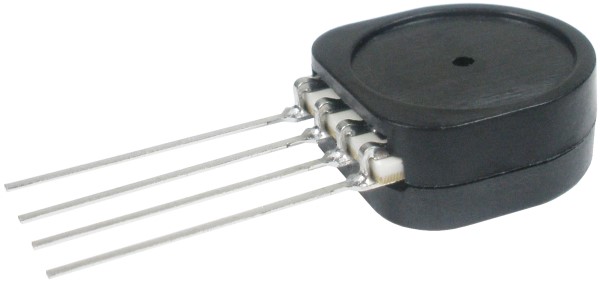

Honeywell NSCSSNN030PAUNV Board Mount Pressure Sensor
Honeywell’s TruStability TSC Series and NSC Series are piezoresistive silicon pressure sensors designed for a ratiometric analog output, enabling pressure readings across a specified range and temperature. The TSC Series features temperature compensation, reducing calibration needs and part-to-part variation. The NSC Series offers flexibility for customer calibration while maintaining stability and accuracy. These sensors are suitable for non-corrosive gases and liquids, with various package styles and mounting options for easy integration into diverse applications like medical equipment, valves, and pumps.
Honeywell NSCSSNN030PAUNV Board Mount Pressure Sensor Specifications:
- Temperature compensated range: 0 °C to 85 °C
- Operating temperature range: -40 °C to 85 °C
- Supply voltage (Vsupply): 0 to 7 Vdc (for pressure ranges <40 mbar | 4 kPa | 20 inH2O)
- Storage temperature: -40 °C to 85 °C
- Soldering time (SIP, DIP): 4 s max. at 250 °C
- Peak reflow temperature (SMT): 15 s max. at 250 °C
- Pressure ranges: ±2.5 mbar to ±10 bar | ±250 Pa to ±1 MPa | ±1 inH2O to ±150 psi
- Stability: Minimizes system calibration needs
- Accuracy: ±0.15 %FSS BFSL
- Package size: 10 mm x 10 mm
- Power consumption: Low
- Media compatibility: Non-corrosive, non-ionic gases and liquids
Buy the NSCSSNN030PAUNV HONEYWELL Board Mount Pressure Sensor | myMectronic
Purchase the Honeywell NSCSSNN030PAUNV pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell NSCSSNN030PAUNV?
You can click on the BUY or RFQ button to purchase NSCSSNN030PAUNV from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part NSCSSNN030PAUNV?
You can download the NSCSSNN030PAUNV datasheet or visit the Honeywell website for support.
Who is the manufacturer of NSCSSNN030PAUNV?
Honeywell
