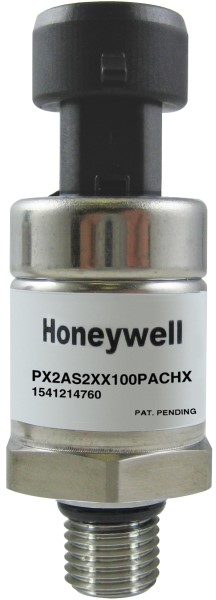

Honeywell PX2AS2XX250PSCHX Heavy Duty Pressure Transducer
Honeywell’s PX2 Series Heavy Duty Pressure Transducers are configurable pressure sensors designed for demanding industrial environments. They employ piezoresistive sensing technology with ASIC signal conditioning in a stainless steel housing, providing accurate and reliable pressure measurements. The PX2 Series is fully calibrated and compensated, making it suitable for absolute, sealed gage, or vented gage pressure applications. With a robust design and a wide range of pressure port and electrical connector options, these transducers are ideal for HVAC/R systems, air compressor systems, and transportation applications. They are not recommended for use with water, saturated air, or ammonia.
Honeywell PX2AS2XX250PSCHX Heavy Duty Pressure Transducer Specifications:
- Pressure Range: 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
- Pressure Reference: Absolute, sealed gage or vented gage
- Pressure Port Types: 7/16-20 UNF 1/4 in 45° Flare Female Schrader (SAE J512), 7/16-20 UNF 45° Flare Male (SAE J513), 7/16-20 UNF 37° Flare Male (SAE J514), G1/4 (ISO 1179-3), G1/8 (ISO 1179-3), M12 x 1.5 (ISO 6149-3), 1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF (SAE J1926-3), or 7/16-20 UNF (SAE J1926-3)
- Electrical Connector Types: Metri-Pack 150 (UL 94 HB or V-0 options), Micro M12, DIN, Deutsch, or cable harness (1 m, 2 m, 3 m, or 5 m)
- Total Error Band: ±2.0 %
- Operating Temperature Range: -40°C to 125°C [-40°F to 257°F]
- Response Time: <2 ms
- Life: Minimum of 10 million cycles to operating pressure
- Mechanical Shock Rating: 100 G per MIL-STD-202F, Method 213B, Cond. F
- Vibration Rating: 20 G sweep, 10 Hz to 2000 Hz
- Ingress Protection: Up to IP69K
- Radiated Immunity Protection: Up to 100 V/m (ISO 11452-2)
- Flame Retardant Options: UL 94 HB standard on all electrical terminations; UL 94 V-0 available upon request
Buy the PX2AS2XX250PSCHX HONEYWELL Heavy Duty Pressure Transducer | myMectronic
Purchase the Honeywell PX2AS2XX250PSCHX Heavy Duty Pressure Transducer securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell PX2AS2XX250PSCHX?
You can click on the BUY or RFQ button to purchase PX2AS2XX250PSCHX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX2AS2XX250PSCHX?
You can download the PX2AS2XX250PSCHX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX2AS2XX250PSCHX?
Honeywell
