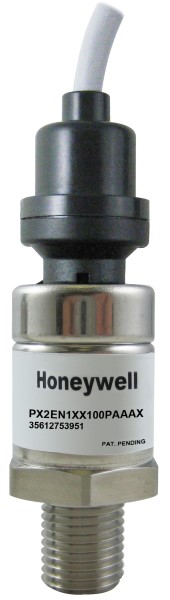

Honeywell PX2EN1XX100PSAAX Heavy Duty Pressure Transducer
Honeywell’s PX2 Series Heavy Duty Pressure Transducer provides a portfolio of highly configurable pressure sensors. These transducers use piezoresistive sensing technology with ASIC signal conditioning in a stainless steel housing, offering a Total Error Band of ±2% over a wide operating temperature range. They are compatible with harsh media, feature ingress protection up to IP69K, and offer robust performance in demanding environments. The PX2 Series is available in multiple pressure ranges and configurations, making it suitable for industrial applications such as compressor monitoring, HVAC/R systems, and factory automation.
Honeywell PX2EN1XX100PSAAX Heavy Duty Pressure Transducer Specifications:
- Pressure Range: 1 bar to 46 bar, 100 kPa to 4.6 MPa, 15 psi to 667 psi
- Total Error Band: ±2%
- Operating Temperature Range: -40 ºC to 125 ºC [-40 °F to 257 °F]
- Connector Types: Delphi Metri-Pack 150, Micro M12, DIN, Deutsch, cable harness (1 m, 2 m, 3 m, or 5 m)
- Port Types: 1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF SAE J1926-3, 7/16-20 UNF SAE J1926-3, 1/4 in 45° Flare Female Schrader (7/16-20 SAE J512), M12 x 1.5 ISO 6149-3, G1/4 ISO 1179-3, G1/8 ISO 1179-3
- Pressure Reference: Absolute or sealed gage
- Output Transfer Function: Ratiometric, regulated or current
- Mechanical Shock Rating: 100 G per MIL-STD-202F, Method 213B, Cond. F
- Vibration Rating: 20 G sweep, 10 Hz to 2000 Hz
- Ingress Protection: Up to IP69K
- Radiated Immunity: 100 V/m
