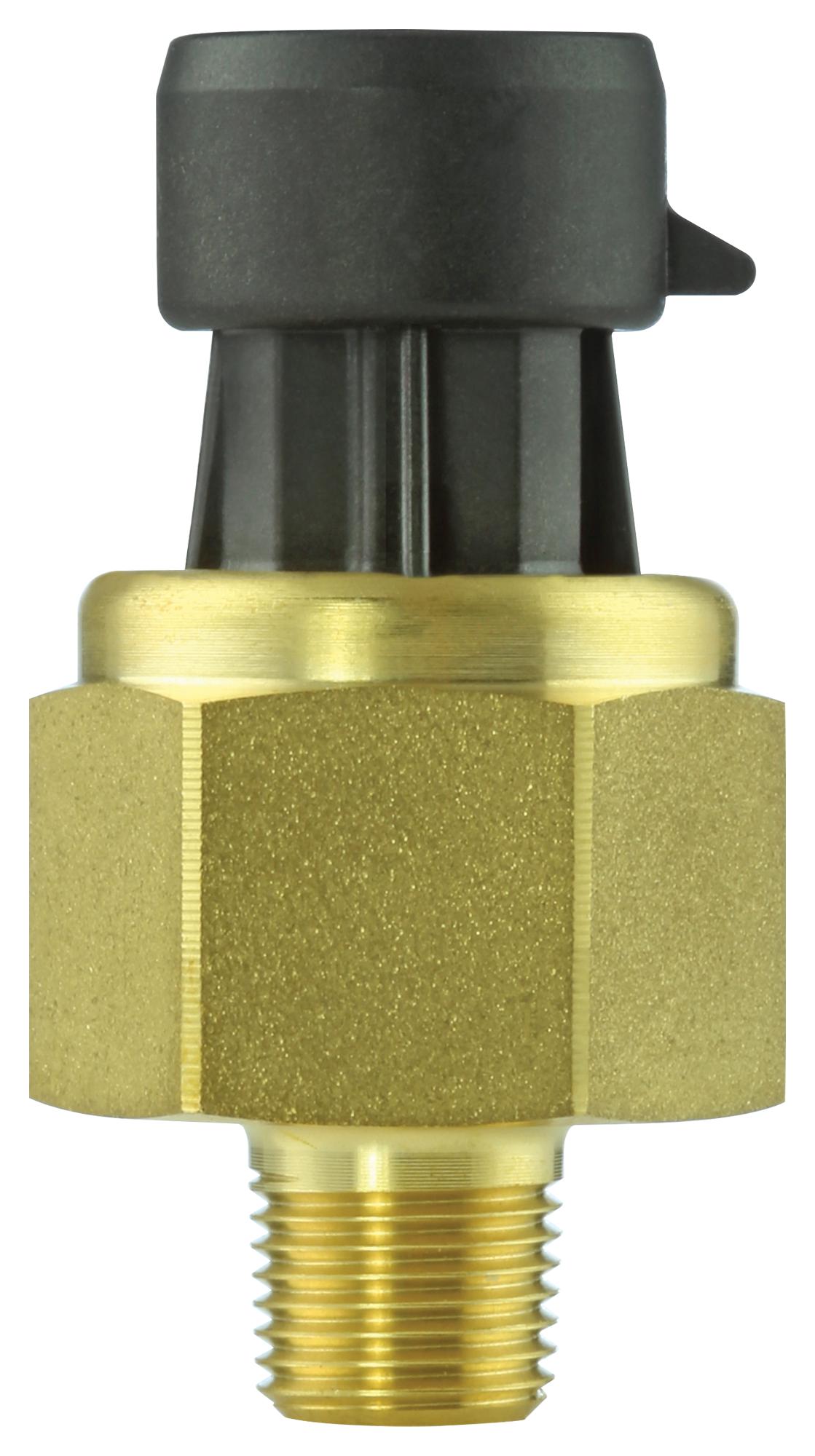

Honeywell PX3AN2BS100PAAAX Heavy Duty Pressure Transducer
Honeywell's PX3 Series Heavy Duty Pressure Transducers utilize piezoresistive sensing technology combined with an application-specific integrated circuit (ASIC). These sensors are fully calibrated and temperature compensated over a range from -40°C to 125°C. They offer comprehensive and accurate measurement performance with a total error band of ±1.0% full-scale span (FSS). The transducers feature high insulation resistance, dielectric strength, electromagnetic compatibility (EMC), and external freeze/thaw resistance. They are designed for low power consumption and come in multiple configurations, providing flexibility for various applications without the need for upfront non-recurring engineering (NRE) or tooling charges. The rugged design ensures reliable operation in tough environmental conditions.
Honeywell PX3AN2BS100PAAAX Heavy Duty Pressure Transducer Specifications:
- Pressure range: 1 bar to 50 bar | 15 psi to 700 psi (absolute and sealed gage)
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
- Total Error Band: +1.0% FSS from -20°C to 85°C [-4°F to 185°F]; +2.0% FSS outside this range
- Supply voltage: 5Vdc ±0.25V, 3.3Vdc ±0.25V
- Current consumption: max 3.5 mA
- Response time: <2 ms
- Insulation resistance: >100 MΩ at 1500 Vdc
- Dielectric strength: AC1500V for 1 min
- Ingress protection: IP67 (Metri-Pack 150), IP69K (cable harness)
- Media compatibility: R410A, R134A, R448A, R32, R1234ZE, engine oil, hydraulic fluids, dry air
- Shock: 100 G, Vibration: 20 G sweep, External freeze/thaw: >6 cycles from -30°C to 50°C
- Material: Brass C36000 housing, alumina, glass, silicon sensing element, nitrile O-rings
Buy the Honeywell Series PX3 Heavy Duty Pressure Transducer: 32313757
Purchase the Honeywell PX3 Series Heavy Duty Pressure Transducer online today and enjoy reliable, high-precision pressure measurement for industrial, HVAC, and instrumentation applications. These rugged transducers are fully calibrated, temperature compensated, and built to withstand extreme conditions including shock, vibration, and external freeze/thaw cycles. Available in multiple configurations with various pressure port options and electrical connectors, they deliver excellent EMC performance and long-term durability. Invest now to optimize your systems with top-quality, dependable pressure sensing technology.
Order your Honeywell Series PX3 1 to 50 bar heavy duty pressure sensor today and ensure reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy Honeywell PX3AN2BS100PAAAX?
You can click on the BUY or RFQ button to purchase PX3AN2BS100PAAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX3AN2BS100PAAAX?
You can download the PX3AN2BS100PAAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX3AN2BS100PAAAX?
Honeywell
