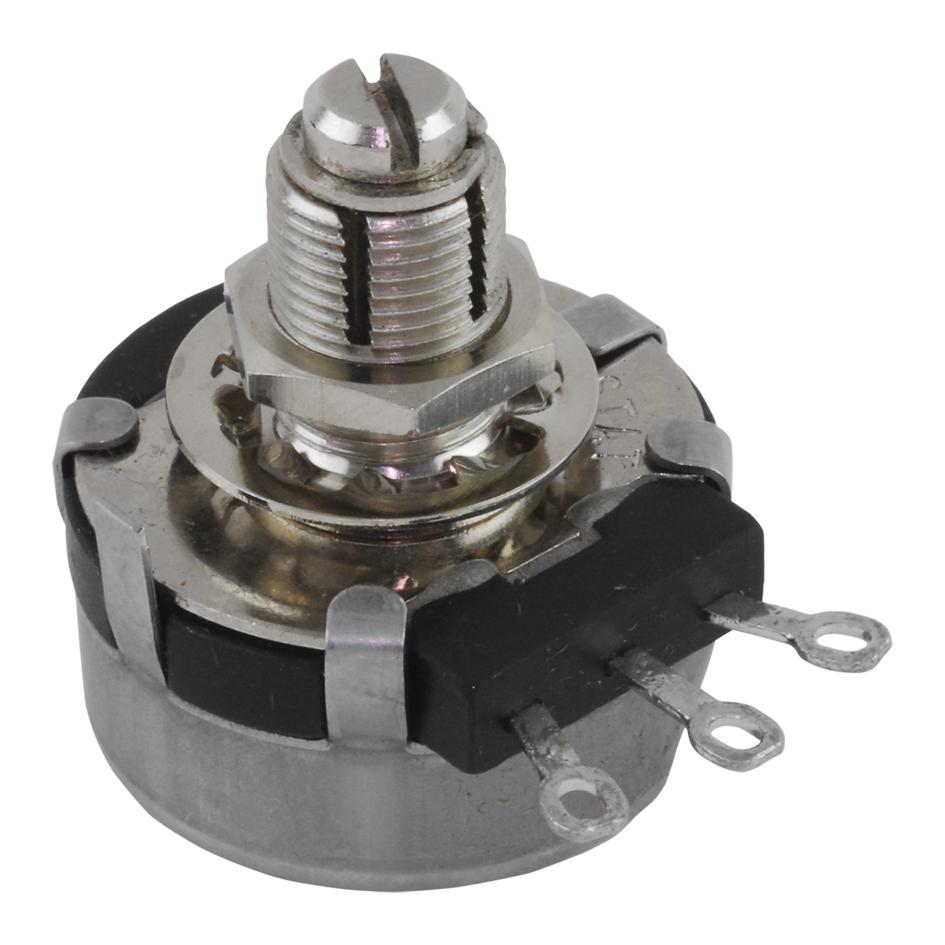

Honeywell RV4LAYSA255B Conductive Plastic Potentiometer
The RV4LAYSA255B is a 1-turn, 1-gang panel-mount rotary potentiometer designed according to MIL-PRF-94 specifications. It features a 2W power rating and utilizes a conductive plastic element for reliable performance. The potentiometer has a robust nickel-plated brass shaft and bushings, providing durability. It converts rotary motion into a variable resistance, enabling smooth adjustment of voltage or current levels. This makes it suitable for controlling position transducers across various applications. The device includes a linear track taper, screwdriver adjustment slot, solder lug terminals, a locking bushing, and a slotted shaft end. It offers a rotational life of 25,000 cycles and operates within a temperature range of -55°C to 120°C.
Honeywell RV4LAYSA255B Conductive Plastic Potentiometer Specifications:
- Power Rating: 2 Watts
- Rotational Life: 25,000 cycles
- Temperature Range: -55°C to +120°C
- Resistance Range: 50Ω to 5 Megohms, linear
- Resistance Tolerance: Up to 1 Megohm +10%, above 1 Megohm +20%
- Effective Rotation: 270° +10°/-0°
- End Resistance: 4Ω max for units up to 250KΩ; 10Ω for higher resistances
- Shaft Material: Nickel-plated brass
- Bushing Lengths: 1/4 in., 3/8 in., 1/2 in., with panel seal options
- Switch Compatibility: Not included, order separately
- Operating Temperature: -55°C to +120°C
- Mechanical Rotation: 312° +3°, with switch 333° +3°
- Stop Torque: Minimum 12 in.-oz.
- Input Voltage: 500 Vdc across end terminals
- Dielectric Strength: 1000 Vac for 60 seconds
- Linearity: ±5% for linear taper
Buy the Buy Conductive Plastic Potentiometer Part Number RV4LAYSA255B Online
Purchase the high-quality Conductive Plastic Potentiometer RV4LAYSA255B online today. Designed for reliability and precise adjustment, this 2-watt device features a durable nickel-plated brass shaft, linear resistance taper, and operates across a temperature range of -55°C to 120°C. Perfect for controlling position transducers and taking advantage of its MIL-PRF-94 compliance, it offers a rotational life of 25,000 cycles. Make your projects more efficient by ordering this rugged, high-performance potentiometer now.
Order your Conductive Plastic Potentiometer RV4LAYSA255B today and enjoy precise control with high durability for demanding applications.
