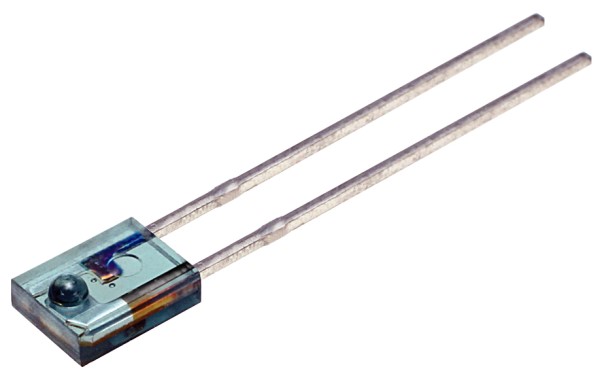

Honeywell SDP8406003 Silicon Phototransistor
The Honeywell SDP8406 is an NPN silicon phototransistor designed for side-looking applications. Encased in a clear plastic package, the phototransistor is positioned to receive radiation from the side, offering a 50-degree acceptance angle. It's mechanically and spectrally matched to Honeywell’s SEP8506 and SEP8706 infrared emitting diodes, making it ideal for optical sensing and detection systems. The SDP8406 is commonly used in proximity sensors, optical switches, and light-activated circuits across various industrial and consumer applications.
Honeywell SDP8406003 Silicon Phototransistor Specifications:
- Acceptance Angle: 50° (nominal)
- Package Type: Side-looking plastic
- Sensitivity Ranges: Wide
- Collector-Emitter Voltage: 30 V
- Emitter-Collector Voltage: 5 V
- Power Dissipation: 100 mW
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Soldering Temperature: 240°C (5 sec)
Buy the SDP8406-003 Honeywell Silicon Phototransistor | myMectronic
Purchase the Honeywell SDP8406-003 Silicon Phototransistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell SDP8406003?
You can click on the BUY or RFQ button to purchase SDP8406003 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SDP8406003?
You can download the SDP8406003 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SDP8406003?
Honeywell
