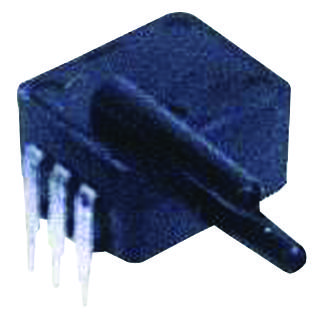

Honeywell SDX05D4 Pressure Sensor
The Honeywell SDX Series silicon pressure sensors offer a cost-effective, small-sized solution for pressure measurement applications. These temperature-compensated, calibrated sensors provide stable and accurate outputs from 0 psi to 1 psi or 0 psi to 100 psi, with models available for absolute or gage pressure. The sensors feature integrated circuit technology housed in a durable DIP package, suitable for use with non-corrosive gases like air. Their low noise, high impedance, and precision calibration make them ideal for HVAC, pneumatics, medical, and computer peripherals requiring reliable pressure sensing.
Honeywell SDX05D4 Pressure Sensor Specifications:
- Supply voltage: up to 20 Vdc
- Pressure ranges: 0 psi to 1 psi, 0 psi to 100 psi
- Output: voltage proportional to pressure, ratiometric to supply
- Temperature compensation: 0°C to 50°C
- Operating temperature: -40°C to 85°C
- Storage temperature: -55°C to 125°C
- Humidity: 0% to 100% RH
- Lead soldering temperature: 250°C for 2-4 seconds
- Physical dimensions: Length 11.94 mm (0.470 in), DIP package
- Pressure port: integrated in DIP package
- Application: medical, HVAC, pneumatic controls, computer peripherals
- High impedance for low power, low noise output
Buy the Honeywell Series SDX Pressure Sensor: SDX05D4
Discover the Honeywell SDX Pressure Sensor series, offering accurate and temperature-compensated pressure measurement from 0 to 1 psi or 0 to 100 psi. The compact DIP package ensures easy integration into limited spaces, making it ideal for HVAC, medical, and pneumatic controls. Designed with integrated circuit technology, these sensors deliver stable, low-noise output with high impedance for low power consumption. Choose the SDX series for reliable, precise pressure sensing that meets industrial demands and operates over wide temperature ranges.
Get Honeywell SDX05D4 today—built for precision and long-lasting durability in pressure measurement applications.
Frequently Asked Questions
Where can I buy Honeywell SDX05D4?
You can click on the BUY or RFQ button to purchase SDX05D4 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SDX05D4?
You can download the SDX05D4 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SDX05D4?
Honeywell
