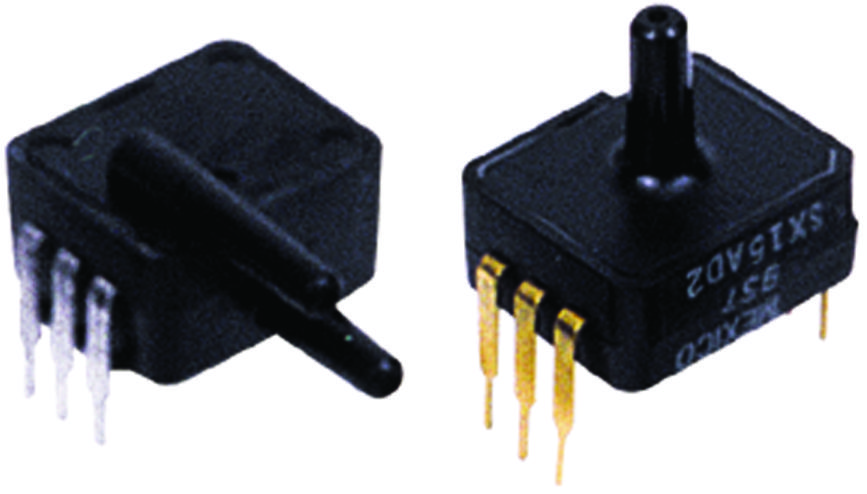

Honeywell SDX15A2 Low Pressure Sensor
The SDX series low pressure sensor offers an effective and compact solution for pressure measurement applications requiring high performance. These calibrated and temperature-compensated sensors deliver accurate and stable output across a temperature range of 0 to 50°C (32 to 122°F). Designed for use with non-corrosive, non-ionic fluids such as air and dry gases, they are ideal for measuring low pressures with ranges of 0 to 5 inches H₂O and 0 to 10 inches H₂O full scale. The bridge output is ratiometric to the supply voltage, and operation is possible with any DC voltage up to 20V. Features include precision temperature compensation, calibrated zero and span, low noise, high impedance for low power applications, and prime grade construction.
Honeywell SDX15A2 Low Pressure Sensor Specifications:
- Pressure Range: 0 to 5 inches H₂O, 0 to 10 inches H₂O
- Temperature Range: 0°C to 50°C (32°F to 122°F)
- Supply Voltage: Up to 20V DC
- Output Type: Ratiometric voltage proportional to pressure
- Temperature Compensation: Yes
- Zero and Span Calibration: Calibrated
- Noise: Low noise operation
- Impedance: High impedance for low power consumption
- Construction: Prime grade available
- Size: Compact DIP package, 11.94 mm (0.470 in) length
- Compatible Fluids: Air and dry gases
- Maximum Pressure: 20V operation range, no permanent failure above specified pressure
Buy the Honeywell Series SDX Pressure Sensors: SDX15A2
Order the Honeywell SDX15A2 low pressure sensor online today and enjoy reliable, accurate, and temperature-compensated pressure measurement. Its compact design and calibrated zero and span make it perfect for HVAC, medical, and pneumatic control applications. With high impedance for low power consumption and an integrated circuit sensor element housed in a durable DIP package, this sensor ensures longevity and performance. Enhance your systems with this precision device that offers stable output across a broad temperature range for demanding industrial environments.
Buy Honeywell SDX15A2 low pressure sensor now and experience unmatched accuracy, stability, and compact design for your pressure measurement needs.
Frequently Asked Questions
Where can I buy Honeywell SDX15A2?
You can click on the BUY or RFQ button to purchase SDX15A2 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SDX15A2?
You can download the SDX15A2 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SDX15A2?
Honeywell
