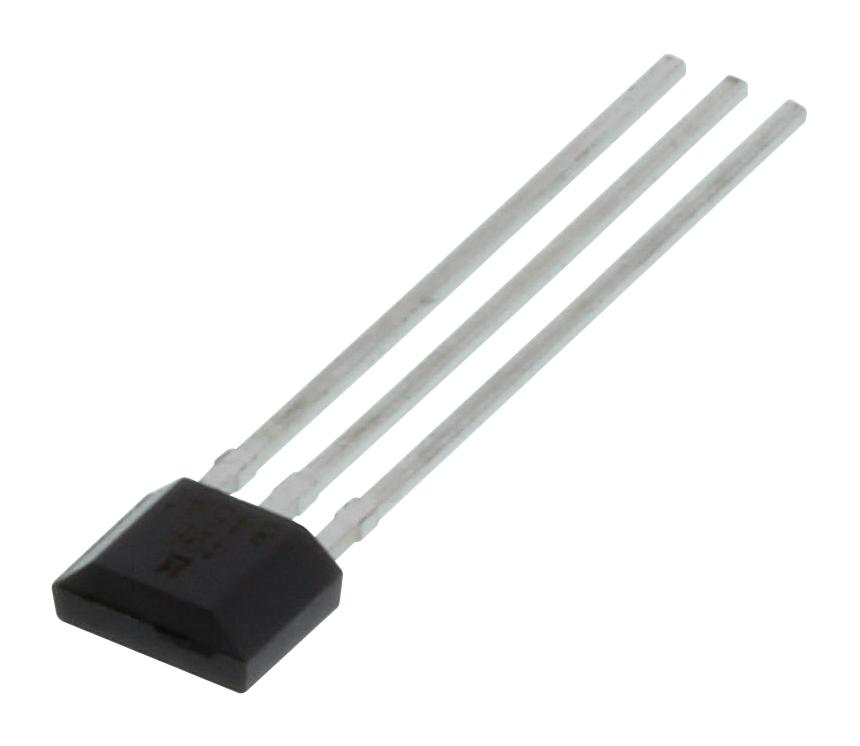

Honeywell SS49E Linear Hall-effect Sensor
The SS49E linear Hall effect sensor IC is an affordable, compact device housed in a 3-pin TO-92 package, ideal for magnetic field detection from magnets or electromagnets. It provides a linear output voltage proportional to magnetic field strength, with low voltage operation starting at 2.7VDC, and consumes only 6mA at 5VDC. Key features include low noise, stability over a broad temperature range from -40°C to 100°C, and enhanced accuracy with thin film resistors. Its small size, energy efficiency, and easy interface make it suitable for industrial sensing, motor monitoring, medical infusion pumps, and security systems.
Honeywell SS49E Linear Hall-effect Sensor Specifications:
- Supply Voltage Range: 2.7 Vdc to 6.5 Vdc
- Current Consumption: 6 mA at 5 Vdc
- Output: Linear voltage proportional to magnetic field strength
- Temperature Range: -40°C to 100°C
- Package: 3-pin TO-92
- Sensitivity: Magnetic fields from magnets or electromagnets
- Noise Level: Low noise output eliminating external filtering needs
- Construction: Miniature, energy-efficient design with integrated thin film resistors for temperature stability
- Applications: Industrial sensing, motor load monitoring, security, medical infusion pumps, and proximity sensing
Buy the Buy Honeywell SS49E Part Number SS49E Online
Purchase Honeywell SS49E online for reliable magnetic detection in industrial, medical, and security systems. This sensor offers a compact size, low power consumption, and high stability over a broad temperature range. Ideal for applications like motor monitoring, proximity sensing, and infusion pump positioning, the SS49E ensures easy integration, low noise output, and accurate response. Its cost-effective design makes it perfect for high-volume production, providing efficient and precise magnetic field measurement with minimal external filtering needed.
Get Honeywell SS49E today—compact, energy-efficient magnetic sensor for industrial and medical applications.
Frequently Asked Questions
Where can I buy Honeywell SS49E?
You can click on the BUY or RFQ button to purchase SS49E from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SS49E?
You can download the SS49E datasheet or visit the Honeywell website for support.
Who is the manufacturer of SS49E?
Honeywell
