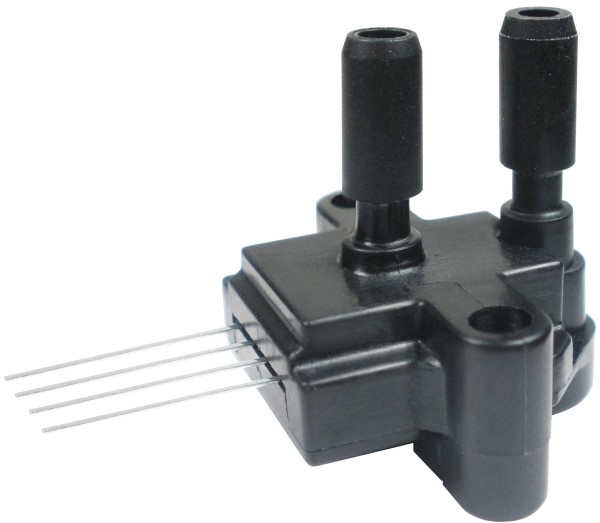

Honeywell SSCSNBN030PGAA5 TruStability Pressure Sensor
The Honeywell TruStability Standard Accuracy Silicon Ceramic (SSC) Series pressure sensor provides a digital output for reading pressure over a specified range and temperature. It's fully calibrated and temperature compensated, offering industry-leading long-term stability and accuracy. Designed for use with non-corrosive gases and liquids, this sensor finds applications in medical devices, industrial controls, and more. Its miniature package and low power consumption make it suitable for a variety of systems.
Honeywell SSCSNBN030PGAA5 TruStability Pressure Sensor Specifications:
- Supplyvoltage: 6.0 Vdc
- Digitalinterfaceclockfrequency_I2C: 400 kHz
- Digitalinterfaceclockfrequency_SPI: 800 kHz
- ESDsusceptibility: 3 kV
- Storagetemperature: 85 °C
- Solderingtimeandtemperature_LeadSolder: 4 s max. at 250 °C
- Solderingtimeandtemperature_PeakReflow: 15 s max. at 250 °C
- Supplyvoltage_3.3Vdc: 3.3 Vdc
- Supplyvoltage_5.0Vdc: 5.0 Vdc
- Supplycurrent_3.3Vdc: 1.6 mA
- Supplycurrent_5.0Vdc: 2 mA
- Compensatedtemperaturerange: -20 °C to 85 °C
- Operatingtemperaturerange: -40 °C to 85 °C
- StartupTime: 2.8 ms
- Responsiveness: 0.46 ms
- I2Cvoltagelevel_low: 0.2 Vdc
- I2Cvoltagelevel_high: 0.8 Vdc
- PullupResistance: 1 kOhm
- Accuracy: 0.25% FSS BFSL
- TotalErrorBand: 2% FSS
- OutputResolution: 12 bits
- Humidity: 0% to 95% RH, non-condensing
- Vibration: MIL-STD-202F, CurveAK
- Shock: MIL-STD-202F, Method213B, Condition F
- LifeCycle: 1 million cycles minimum
- SolderReflow: J-STD-020-C
- WettedMaterials_Port1_Covers: hightemperature polyamide
- WettedMaterials_Port2_Covers: hightemperature polyamide
- WettedMaterials_Port1_Substrate: alumina ceramic
- WettedMaterials_Port2_Substrate: alumina ceramic
- WettedMaterials_Port1_Adhesives: epoxy, silicone
- WettedMaterials_Port2_Adhesives: epoxy, silicone
- WettedMaterials_Port1_ElectronicComponents: ceramic, glass, solder, silicon
- WettedMaterials_Port2_ElectronicComponents: silicon, glass, gold, solder
Buy the SSCSNBN030PGAA5 HONEYWELL TruStability Pressure Sensor | myMectronic
Purchase the Honeywell SSCSNBN030PGAA5 pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell SSCSNBN030PGAA5?
You can click on the BUY or RFQ button to purchase SSCSNBN030PGAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SSCSNBN030PGAA5?
You can download the SSCSNBN030PGAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SSCSNBN030PGAA5?
Honeywell
