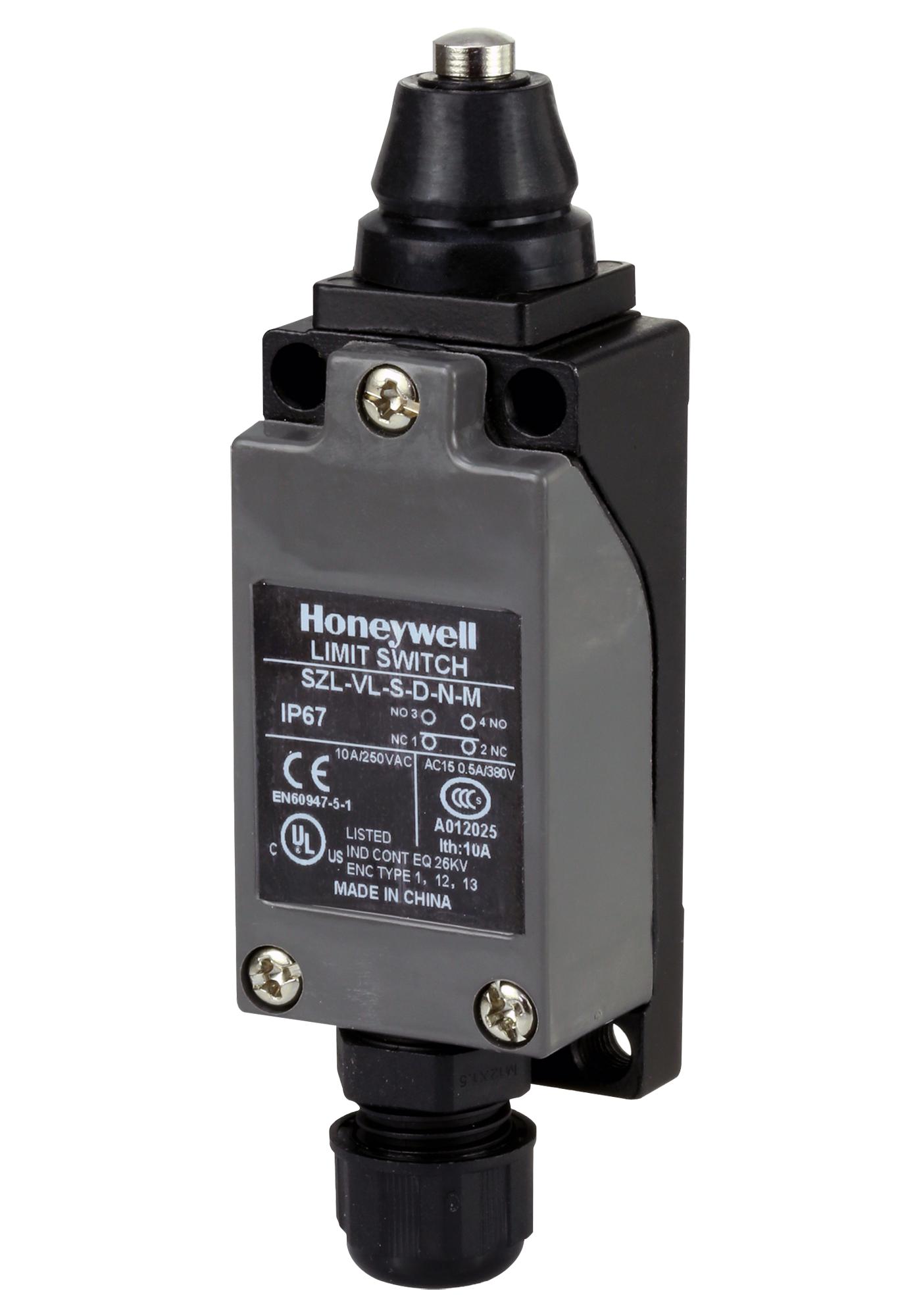

Honeywell SZLVLSDNM Miniature Industrial Limit Switch
The SZL-VL-S Series miniature industrial limit switch is designed for tight spaces, featuring IP67 sealing for water immersion protection and rugged die-cast housing. Suitable for OEM machinery, it offers a range of configurable actuators, snap-action contacts, and positive-opening contacts for reliability. The switch supports heavy electrical loads up to AC-15 A300 and DC-13 Q300 ratings, with a mechanical life of 10 million cycles. Ideal for applications like material handling, safety barriers, and automation in harsh environments, the switch conforms to global certifications including CCC, CE, and cULus.
Honeywell SZLVLSDNM Miniature Industrial Limit Switch Specifications:
- Housing Material: Die-cast metal with flame-retardant thermoplastic cover
- Ingress Protection: IP67, NEMA 1, 12, 13
- Electrical Ratings: AC-15 A300 (380 Vac/0.5 A), DC-13 Q300 (220 Vdc/0.05 A)
- Mechanical Life: 10 million cycles
- Electrical Life: 0.5 million cycles
- Operating Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 95%RH
- Shock: 30 G conforming to IEC 60068-2-27
- Vibration: 10 G, 10 Hz to 55 Hz, 0.75 mm displacement amplitude
- Contact Material: Silver alloy
- Certifications: CCC, CE, cULus
- Mounting: 22 mm holes, various actuators including rotary, plunger, and wobble types
- Output Type: Snap-action contacts, positive-opening (certain versions)
Buy the Honeywell Series SZL-VL-S Limit Switch: 002389
Purchase Honeywell miniature industrial limit switch online today to ensure reliable detection in confined spaces and harsh environments. Designed for durability with a robust die-cast housing, IP67 sealing, and configurable actuators, it supports heavy electrical loads. Whether for safety, automation, or machinery position sensing, this switch offers proven performance with a lifecycle of up to 10 million cycles. Easy wiring and global approvals make it suitable for diverse industrial applications, helping you streamline operations with confidence.
Get Honeywell SZL-VL-S series limit switch today—built for rugged industrial performance and reliable long-lasting operation.
Frequently Asked Questions
Where can I buy Honeywell SZLVLSDNM?
You can click on the BUY or RFQ button to purchase SZLVLSDNM from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SZLVLSDNM?
You can download the SZLVLSDNM datasheet or visit the Honeywell website for support.
Who is the manufacturer of SZLVLSDNM?
Honeywell
