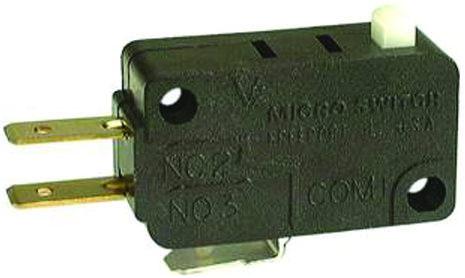

Honeywell V71B17D8 Miniature Basic Switch
The V7-1B17D8 is a single-pole double-throw miniature switch with a pin plunger actuator and quick-connect terminals. It offers reliable performance in applications like limit sensing, presence detection, and ON/OFF control. Designed for harsh environments, it supports electrical loads from less than 0.1A up to 25A, ensuring long cycle life of up to 10 million cycles. Its rugged thermoplastic housing, versatile actuator options, and certifications such as UL, CSA, and ENEC make it ideal for industrial, medical, and HVAC applications, providing dependable switching in demanding conditions.
Honeywell V71B17D8 Miniature Basic Switch Specifications:
- Circuitry: SPDT
- Operating Force: 0.25 N to 3.9 N [15 g to 397 g]
- Contact Material: Silver, gold plated, gold alloy
- Housing Material: High strength thermoplastic
- Temperature Range: -40°C to 85°C [-40°F to 185°F], options up to 175°C [347°F]
- Mechanical Life Cycle: Up to 10 million cycles
- Electrical Ratings: 0.1 A to 25 A, 125 Vac, 250 Vac, 277 Vac, support for HP and resistive loads
- Actuators: Pin plunger, integral lever options, auxiliary lever options
- Agency Certifications: UL, CSA, ENEC, RoHS compliant
- Housing: Rugged thermoplastic, rated for harsh environment use
- Terminal Type: Quick connect (0.250 in wide x 0.032 in thick), PCB
- Pretravel: 0.76 mm [0.030 in], Overtravel: 3.04 mm [0.120 in], Differential Travel: 2.16 mm [0.085 in]
- Temperature: -40°C to 85°C, with options for up to 175°C
Buy the Honeywell Series V7 V7-1B17D8: Miniature Basic Switch
Purchase our Honeywell Series V7 V7-1B17D8 miniature switch online now for trusted, long-lasting switching performance in industrial machinery, HVAC, and medical devices. Its compact design, robust thermoplastic housing, and versatile actuator options provide excellent reliability at loads up to 25A. With UL, CSA, and ENEC certifications and a cycle life of up to 10 million, this switch guarantees dependable operation in harsh environments. Buy online today for rapid delivery and exceptional quality that meets your project needs and compliance standards.
Order your Honeywell Series V7 V7-1B17D8 miniature switch today and ensure reliable performance in demanding industrial and HVAC applications.
Frequently Asked Questions
Where can I buy Honeywell V71B17D8?
You can click on the BUY or RFQ button to purchase V71B17D8 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V71B17D8?
You can download the V71B17D8 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V71B17D8?
Honeywell
