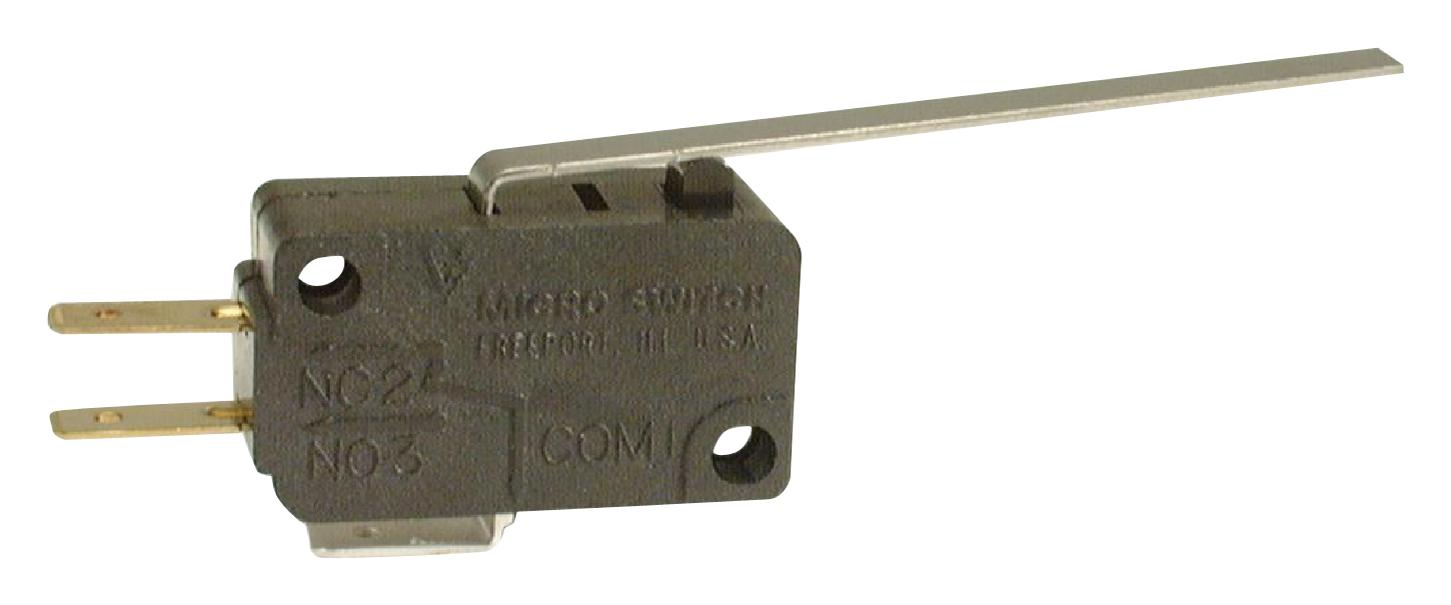

Honeywell V71C18D8 Micro Switch
Honeywell's MICRO SWITCH V7 series offers reliable, miniature basic switches designed for long-term performance in rugged environments. These switches feature a thermoplastic housing and versatile actuation options, including pin plungers and integral or auxiliary levers. Capable of operating forces from as low as 15 grams up to 397 grams, they are suitable for sensitive to high-force applications. Rated up to 25 A, with industry-leading temperature ranges from -40°C to 175°C, they are ideal for demanding industrial, vending, microwave, oven, and pressure sensing applications, offering up to 10 million cycles of durability and global certifications including UL, CSA, ENEC.
Honeywell V71C18D8 Micro Switch Specifications:
- Housing Material: High strength thermoplastic
- Operating Temperature Range: -40°C to 175°C
- Mechanical Life: Up to 10 million cycles
- Maximum Operating Force: 0.25 N to 3.9 N (15 g to 397 g)
- Contact Material: Silver, gold-plated, gold alloy
- Electrical Ratings: 0.1 A to 25 A, 125 Vac, 250 Vac, 277 Vac, up to 1/2 HP
- Circuitry Options: SPDT, SPNC, SPNO
- Actuator Options: Pin plunger, integral levers, auxiliary levers
- Housing Certification: CSA, ENEC, UL
- Sealing: Dust and splash resistant plunger boot seal
- Pretravel: 0.89 mm to 2.16 mm (varies by model)
- Differential Travel: Varies per model, typically around 0.047 inches
- Contact Forces: 15 g to 397 g operating force (approximate 0.25 N to 3.9 N)
Buy the Buy Honeywell V7 Series Micro Switch Part Number V71C18D8 Online
Purchase the Honeywell V7 Series Micro Switch V71C18D8 online today for dependable performance in harsh environments. With flexible actuation options, high-temperature tolerance up to 175°C, and ratings up to 25 A, these switches ensure long-lasting durability and reliable operation in industrial, vending, microwave, and pressure sensing applications. Certified globally with UL, CSA, and ENEC, they support a wide range of equipment. Convenient online ordering delivers professional-grade switches directly to your project, reducing downtime and enhancing operational efficiency with trusted Honeywell quality.
Order your Honeywell Micro Switch V7 Series V71C18D8 today and ensure reliable, industrial-grade performance for your demanding applications.
Frequently Asked Questions
Where can I buy Honeywell V71C18D8?
You can click on the BUY or RFQ button to purchase V71C18D8 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V71C18D8?
You can download the V71C18D8 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V71C18D8?
Honeywell
