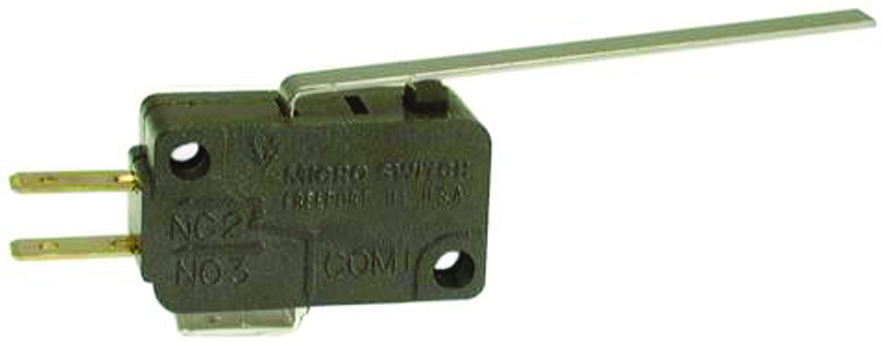

Honeywell V72B17D8048 Miniature Switch
The V7-2B17D8-048 is a single-pole double-throw miniature switch with a straight lever actuator and quick-connect terminals, suitable for precision ON/OFF control and limit sensing. Part of the MICRO SWITCH™ V7 series, it operates within a temperature range of -40°C to 85°C and manages electrical loads from less than 0.1A up to 25A, making it versatile for industrial, medical, HVAC, and electronic applications. Engineered for long life, it features a durable thermoplastic housing, quick response, and flexible mounting options, ensuring reliable performance in harsh conditions.
Honeywell V72B17D8048 Miniature Switch Specifications:
- Circuitry: SPDT
- Operating Force: 0.25 N to 3.9 N [15 g to 397 g]
- Temperature Range: -40°C to 85°C
- Electrical Ratings: Up to 25A, 125/250/277 Vac
- Housing Material: High strength thermoplastic
- Actuators: Straight lever
- Terminals: Quick connect 6.35 mm x 0.81 mm [0.25 in x 0.032 in]
- Mechanical Life: Up to 10 million cycles
- Contact Material: Silver, gold plated
- Mounting Holes: 3.1 mm
- Certification: UL, CSA, ENEC
- Dimensions: 18.54 mm x 18.54 mm footprint, lever length approx. 15 mm
- Switch Type: Basic miniature switch
Buy the Buy Honeywell V7-2B17D8-048 Micro Switch Series Online
Order the Honeywell V7-2B17D8-048 miniature switch online today for dependable performance in limit detection, ON/OFF control, and various industrial applications. Featuring a durable thermoplastic housing, quick connect terminals, and a long life cycle of up to 10 million cycles, this switch provides outstanding reliability in harsh environments from -40°C to 85°C. Its high electrical capacity up to 25A and versatile mounting options make it ideal for medical, HVAC, electronic, and industrial automation needs. Purchase now for quick delivery and long-lasting precision control.
Get Honeywell V7-2B17D8-048 miniature switch today—built for precision, high load capacity, and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy Honeywell V72B17D8048?
You can click on the BUY or RFQ button to purchase V72B17D8048 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V72B17D8048?
You can download the V72B17D8048 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V72B17D8048?
Honeywell
