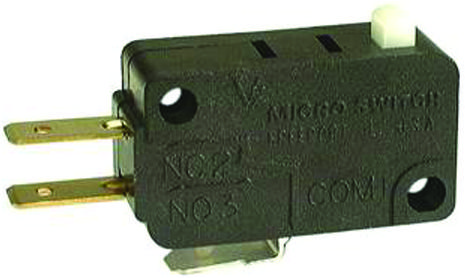

Honeywell V72S17D8 Micro Switch
Honeywell's MICRO SWITCH V7 Series miniature switches are rugged, reliable, and designed for long-term use in industrial applications. These high-performance, miniature switches feature a thermoplastic housing, and are certified by CSA, UL, and ENEC for global compatibility. They offer diverse actuation options including pin plungers and integral levers, and support electrical ratings from 0.1 A up to 25 A. With temperature ranges from -40°C to 175°C, and up to 10 million mechanical cycles, they are ideal for harsh environments, vending machines, microwave interlocks, oven latches, and pressure sensing systems, providing versatile, durable switching solutions.
Honeywell V72S17D8 Micro Switch Specifications:
- Circuitry: SPDT, SPNC, SPNO
- Operating Force: 0.25 N to 3.9 N (15 g to 397 g)
- Travel: Pretravel 0.05-0.25 inches, Overtravel 0.36-3.04 inches
- Differential Travel: 0.027-0.060 inches
- Actuator Options: Pin plunger, integral lever, auxiliary lever
- Electrical Ratings: Up to 25 A, 125/250/277 Vac
- Housing Material: High strength thermoplastic
- Operating Temperature: -40°C to 85°C (option for 175°C)
- Mechanical Life Cycle: Up to 10 million cycles
- Contact Material: Silver, gold plated, gold alloy
- Agency Certification: CSA, UL, ENEC
- Housing: Rugged thermoplastic
Buy the Buy Honeywell MICRO SWITCH V7 Series Part Number V72S17D8 Online
Purchase Honeywell V7 Series Miniature Switches online today for versatile and reliable switching solutions. These rugged, high-current-rated switches support applications like vending machines, oven latches, pressure sensing, and microwave interlocks. With certifications from CSA, UL, and ENEC, they are suitable for global markets. Their robust thermoplastic housing withstands harsh conditions from -40°C to 175°C. With a long mechanical life of up to 10 million cycles, these switches deliver exceptional durability, precision, and performance, ensuring your equipment operates reliably over many years.
Get Honeywell V72S17D8 today—built for precision and long-lasting durability in harsh industrial environments.
Frequently Asked Questions
Where can I buy Honeywell V72S17D8?
You can click on the BUY or RFQ button to purchase V72S17D8 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V72S17D8?
You can download the V72S17D8 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V72S17D8?
Honeywell
