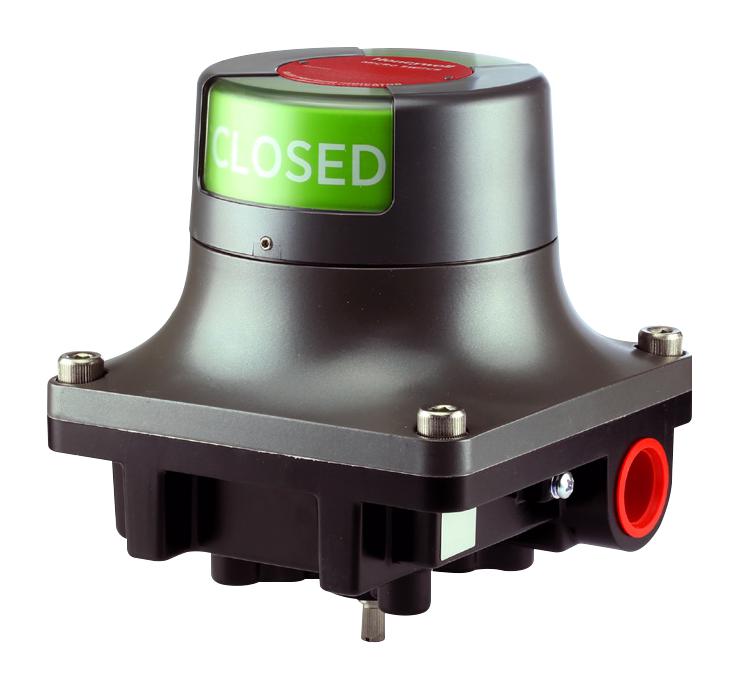

Honeywell VPX1E2ABBY1A2B Valve Position Indicator
The Honeywell VPX Series Valve Position Indicator is designed for hazardous outdoor environments, offering explosion-proof, flame-proof, and intrinsically safe options. Constructed with rugged die-cast aluminum housing, it withstands harsh conditions, including wind, rain, snow, and dust, classified under NEMA 4X. Suitable for various industries like oil, gas, petrochemical, mining, and chemical plants, it provides reliable, accurate position indication. Multiple color and angle options ensure visibility from all directions, with certifications including UL, ATEX, IEC Ex, and SIL 3 rating for high safety standards. It supports electrical ratings up to 15 A at 150–250 Vac, enduring up to half a million cycles with a wide temperature range.
Honeywell VPX1E2ABBY1A2B Valve Position Indicator Specifications:
- Housing material: Aluminum with protective paint finish
- Housing size: 152.3 mm H x 140 mm W x 140 mm D
- Operating temperature: -40°C to 80°C depending on version
- Sealing: NEMA 4, 4X, 6, 13; IP66, IP67
- Agency approvals: cULus, ATEX, IECEx (coming soon: NEPSI, KOSHA)
- Explosion proof designations: Class I, Division 1, Groups B, C, D; II 1G, 12 D
- Visual indicator: Multiple colors and angles, visible from all directions
- Electrical ratings: 15 A at 150–250 Vac for electromechanical, 8.2 V for proximity sensors
- Mechanical endurance: 500,000 cycles minimum
- Safety Level: SIL 3
- Shock: 50 g, 11 ms, IEC 60068-2-27
- Vibration: 10 Hz to 500 Hz, 5 g, IEC 60068-2-6
- Weight: Approx. 2.4 kg
Buy the Buy Honeywell VPX Series Valve Position Indicator Part Number VPX1E2ABBY1A2B Online
Purchase the Honeywell VPX Series Valve Position Indicator online today to ensure reliable and precise valve status monitoring in hazardous outdoor environments. Featuring explosion-proof and intrinsically safe versions, it provides robust performance across industries like oil, gas, chemical, and mining. With global certifications including UL, ATEX, IECEx, and SIL 3, this device guarantees safety and durability. Its weather-sealed aluminum housing withstands harsh conditions, while multiple color and angle options ensure visibility. Order now for fast delivery and enhance your process safety and efficiency.
Buy Honeywell VPX series valve position indicator with explosion-proof and intrinsically safe options now for reliable outdoor process control.
Frequently Asked Questions
Where can I buy Honeywell VPX1E2ABBY1A2B?
You can click on the BUY or RFQ button to purchase VPX1E2ABBY1A2B from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part VPX1E2ABBY1A2B?
You can download the VPX1E2ABBY1A2B datasheet or visit the Honeywell website for support.
Who is the manufacturer of VPX1E2ABBY1A2B?
Honeywell
