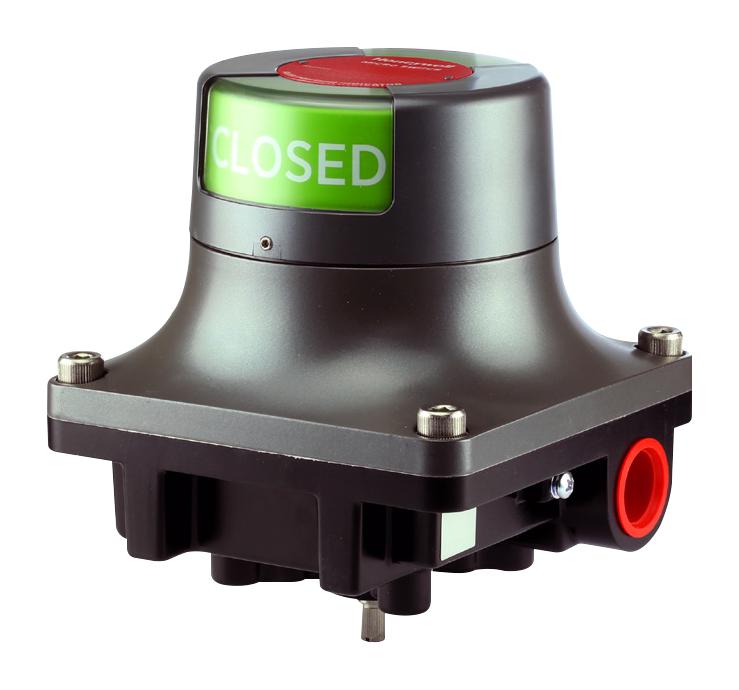

Honeywell VPX1E2ABYB1A2B Valve Position Indicator
The Honeywell VPX Series Valve Position Indicator is designed for outdoor and hazardous environments, featuring rugged aluminum housing, weather seals, and global safety certifications such as ATEX, IEC Ex, and SIL 3. Variants with inductive proximity switches are intrinsically safe and suitable for chemical plants, refineries, oil and gas, and other corrosive or explosive atmospheres. The indicators are visually visible from all angles, customizable in colors and rotation, and certified explosion-proof and flame-proof, ensuring high reliability and safety in demanding industrial applications.
Honeywell VPX1E2ABYB1A2B Valve Position Indicator Specifications:
- Housing Material: Aluminum with protective paint finish
- Housing Size: 152.3 mm H x 140 mm Wx 140 mm D (6.0 in H x 5.5 in Wx 5.5 in D)
- Operating Temperature: -40 °C to 80 °C (-40 °F to 176 °F)
- Sealing: NEMA 4, 4X, 6, 13; IP66, IP67 per IEC standards
- Agency Approvals: cULus, ATEX, IECEx, CE, coming soon NEPSI, KOSHA
- Explosion Proof Classifications: Division 1, Class I, Groups B-D; ATEX/IEC Ex I 2 G, 12 D, Ex db IIC T6 Gb, Ex tb IIIC T85°C Db
- Visual Indicator: Multiple colors and angles, visible from all directions
- Electrical Ratings: 15 A 150V AC (UL), 16 A 250V AC (CE); Intrinsically Safe: 8.2 V, <1mA consumption
- Mechanical Endurance: 500,000 cycles
- Safety Level: SIL 3 (IEC 61508), endurance cycles conforming to standard
- Shock & Vibration: IEC 60068 standards, 50 g shock, 10-59 Hz vibration
- Weight: Approximately 2.4 kg
Buy the Buy Honeywell Valve Position Indicator Part Number VPX1E2ABYB1A2B Online
Purchase the Honeywell VPX Series Valve Position Indicator online today to ensure accurate and reliable monitoring in hazardous and outdoor environments. Crafted with sturdy aluminum housing, weatherproof seals, and certified explosion-proof safety features, this indicator is perfect for industries like oil, gas, chemical, and water treatment facilities. Its intrinsically safe options and multi-angle visibility improve operational safety and efficiency. With global approvals and high durability, ordering online guarantees quick delivery and trusted performance for demanding industrial applications, providing peace of mind and continuous process control.
Buy Honeywell VPX1E2ABYB1A2B now and experience unmatched reliability and safety in hazardous environments with this durable valve position indicator.
