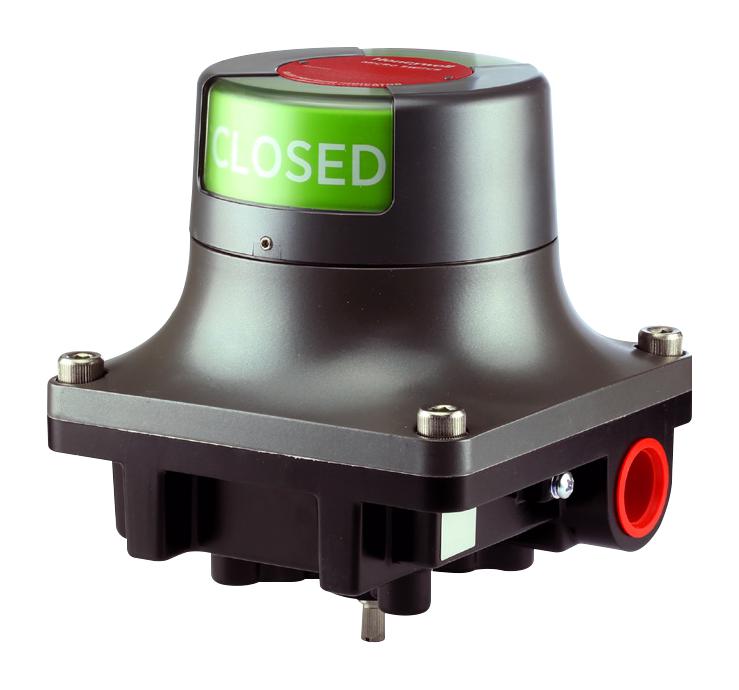

Honeywell VPX1E4ABYB1A2B Valve Position Indicator
The Honeywell VPX Series Valve Position Indicator switches are designed for hazardous outdoor environments, offering explosion-proof, flame-proof, and intrinsically safe options. Constructed with durable die-cast aluminum housings, they are weather sealed to meet NEMA 4X standards, protecting against rain, wind, snow, and dust. The switches operate reliably in temperatures from -40°C to 80°C, with versions featuring electromechanical or inductive proximity switches. Suitable for safety-critical applications, including oil and gas, chemical plants, and water treatment facilities, these products are certified for global hazardous area standards including ATEX, IEC Ex, and UL.
Honeywell VPX1E4ABYB1A2B Valve Position Indicator Specifications:
- Housing Material: Aluminum with protective paint finish
- Housing Size: 152.3 mm H x 140 mm Wx 140 mm D [6.0 in H x 5.5 in Wx 5.5 in D]
- Operating Temperature: -40°C to 80°C (proximity switches)
- Sealing: NEMA 4, 4X, 6, 13; IP66 (IEC 60079-0); IP67 (IEC 60529)
- Agency Approvals: cULus, ATEX, IECEx, CE (coming soon: NEPSI, KOSHA)
- Explosion Proof Design: Division 1, Class I, Groups B-D (Gas), E-G (Dust); ATEX II 2G, 12 D (Gas), IIIC T85°C (Dust)
- Electrical Ratings: 15 A 150 Vac (UL & CE), 10 A 250 Vac
- Mechanical Endurance: Minimum 500,000 cycles
- Safety Integrity Level: SIL 3 (IEC 61508), with electrical endurance of up to 50,000 cycles
- Shock Resistance: 50 g, 11 ms, IEC 60068-2-27
- Vibration Resistance: 10-500 Hz, 5 g, IEC 60068-2-6
- Size: 152.3 mm x 140 mm x 140 mm approximately
- Weight: 2.4 kg (approx.)
Buy the Honeywell VPX – Reliable Valve Position Indicator for Industrial Applications
Purchase the Honeywell VPX Series valve position indicators online today and ensure reliable monitoring in hazardous outdoor environments. Designed with rugged aluminum housing for durability, these switches meet global safety standards like ATEX, IECEx, and UL, making them suitable for oil and gas, chemical, and water treatment industries. Weather sealed for protection against dust, water, and corrosive elements, the VPX series offers high cycle endurance, temperature resilience up to 80°C, and a variety of configurations to suit your control and safety needs. Order now for dependable performance.
Get Honeywell VPX series valve position indicator today—built for precision and long-lasting durability in hazardous environments.
