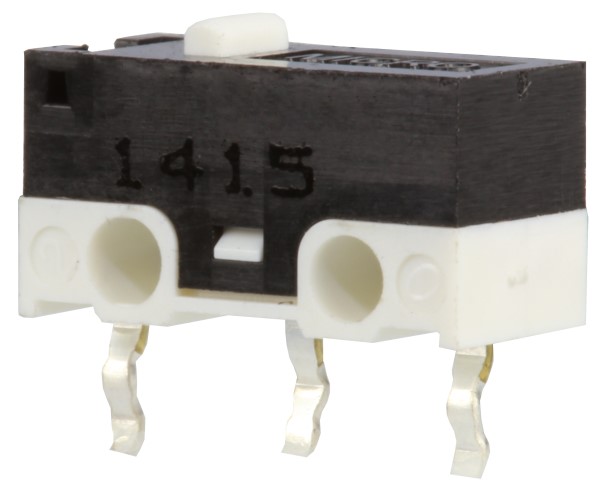

Honeywell ZX40C30A01 Subminiature Basic Switch
Honeywell’s MICRO SWITCH™ ZX Series is a subminiature snap-action switch suitable for controlling electrical loads ranging from logic-level circuits to limited power-duty switching. Its small size, combined with a wide variety of stainless steel levers and termination options, makes it adaptable to a broad range of applications. The ZX Series is certified to UL, cUL, ENEC, and CQC for worldwide use, offering a cost-effective solution for subminiature switch requirements. It is ideal for industrial, commercial, and medical applications where space is limited and reliability is essential.
Honeywell ZX40C30A01 Subminiature Basic Switch Specifications:
- Circuitry: SPDT
- Operating Force: 90 g or 150 g @ plunger
- Termination: PCB, solder
- Sealing: IP40
- Actuators: Pin plunger, levers, simulated roller levers
- Agency Certifications: UL, cUL, ENEC, CQC, RoHS compliant
- Operating Temperature: -40 °C to 85 °C
- Mechanical Endurance: 3,000,000 cycles
- Electrical Endurance: 10,000 cycles
- Switch Resistance: 50 mΩ max.
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 1500 VRMS
- Contact Material: Silver
- Housing Material: Polyamide (nylon)
Buy the ZX40C30A01 HONEYWELL Subminiature Basic Switch | myMectronic
Purchase the Honeywell ZX40C30A01 Subminiature Basic Switch securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell ZX40C30A01?
You can click on the BUY or RFQ button to purchase ZX40C30A01 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ZX40C30A01?
You can download the ZX40C30A01 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ZX40C30A01?
Honeywell
