Hammond Manufacturing 1182F30 Toroidal Power Transformer
The 1182F30 is a compact, lightweight toroidal power transformer designed for versatile industrial and electronic applications. It features dual primary windings compatible with 117/234VAC at 50/60Hz and dual secondary windings for various power needs. Constructed with Class B insulation, it ensures safe operation with minimal heating and electromagnetic interference. The transformer includes flexible conductors at least 8 inches long, dielectric tested at 4000VAC RMS, and comes with mounting hardware such as rubber washers, steel washer, bolt with lockwasher, and hex nut. It complies with UL 506, CSA C22.2 No. 66-209651, IEC 61558-2-4 standards, making it reliable for sensitive electronic systems.
Hammond Manufacturing 1182F30 Toroidal Power Transformer Specifications:
- Power Rating: 30V @ 3.75A secondary, 117V primary at 60Hz
- Construction: Class B insulation
- Windings: Dual primary for 117/234VAC, dual secondary for different voltages
- Dimensions: Compact size, approximately 4.8 inches in length
- Weight: Approximately 4.85 pounds ±4%
- Conductors: Minimum 8-inch long insulated flexible leads
- Dielectric Testing: 4000VAC RMS between primary and secondary
- Mounting Hardware: Two rubber washers, steel mounting washer, bolt with lockwasher, hex nut
- Standards: UL 506, CSA C22.2 No. 66-209651, IEC 61558-2-4

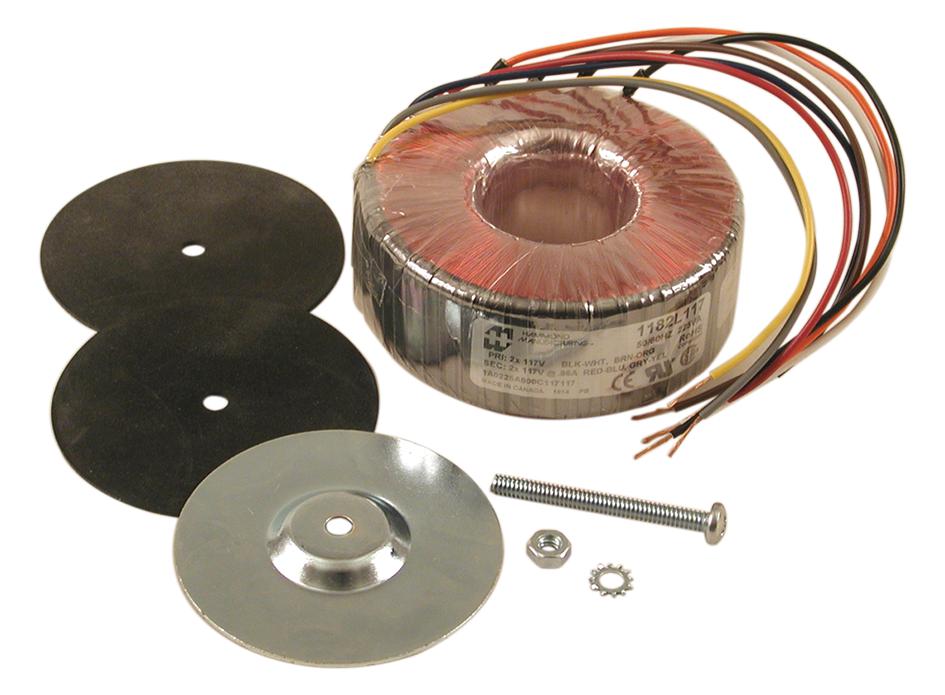

Buy the Buy Hammond Power Transformer Part Number 1182F30 Online
Purchase the Hammond 1182F30 toroidal power transformer online for efficient, reliable power conversion tailored to industrial and electronic applications. Its dual primary windings support 117/234VAC at 50/60Hz, while the dual secondary windings provide versatile voltage options. Constructed with Class B insulation, it minimizes heating and electromagnetic interference, ensuring safe operation. The lightweight, compact design includes flexible leads at least 8 inches long and renowned mounting hardware, tested at 4000VAC. Perfect for sensitive electronic equipment, this transformer is compliant with UL, CSA, and IEC standards, offering high quality and durability.
Get Hammond 1182F30 today—designed for reliable power conversion in compact industrial systems.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1182F30?
You can click on the BUY or RFQ button to purchase 1182F30 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1182F30?
You can download the 1182F30 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1182F30?
Hammond Manufacturing
