Hammond Manufacturing 1182G18 Datasheet & Stock

The 1182G18 is a Toroidal Power Transformer made of class B material with dual primary and dual secondary windings.



Operation without heating/high efficiency

Low loss by diffusion of magnetic flux (low EMI)

Primary dual 117/234VAC, 50/60Hz

Flexible conductors of at least 8" long

Dielectric test 4000VAC RMS between the primary and the secondary

Complies with UL 506 (XPTQ2 Guide) No. E207860

Meets CSA Standard C22.2 No. 66-209651 file

Compliant with standard 61558-2-4 CEIC according to EC

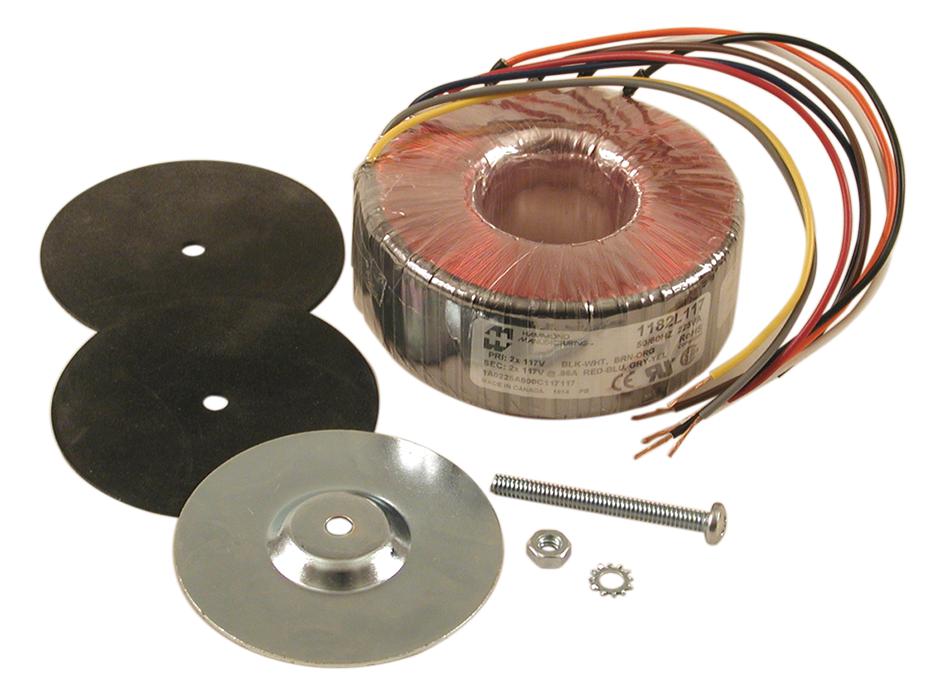

Toroidal transformer, 2x Rubber washer (0.062" T x 3.75" OD), 1x Steel mounting washer (16GA x 3.56" OD), 1x 1/4-20 Bolt (2.50") with a Lockwasher and 1/4-20 Hex nut.

img 1182G18_Hammond-Manufacturing.jpg View
SourcePart NoStockInv DateQty/Price USDBuy/RFQ
Newark1182G182304-15-2024Unit price: $91.8
Authorized Distributors
Powell Electronics1182G181504-15-2024Unit price: $83.7
Authorized Distributors
Digi-Key Electronics1182G18604-15-2024Unit price: $88.76
Authorized Distributors

Specifications for Hammond Manufacturing 1182G18

Frequently Asked Questions

Where can I buy Hammond Manufacturing 1182G18?

You can click on the BUY or RFQ button to purchase 1182G18 from an authorized Hammond Manufacturing distributor.

How do I troubleshoot issues or seek technical support for part 1182G18?

You can download the 1182G18 datasheet or Visit the Hammond Manufacturing website for support.

Who is the manufacturer of 1182G18?

Hammond Manufacturing
