Hammond Manufacturing 1182H240 Datasheet & Stock

The 1182H240 is a Toroidal Power Transformer made of class B material with dual primary and single secondary.




Compact

Lightweight

Operation without heating/high efficiency

Low loss by diffusion of magnetic flux (low EMI)

Primary dual 117/234VAC, 50/60Hz

Flexible conductors of at least 8" long

Dielectric test 4000VAC RMS between the primary and the secondary

Complies with UL 506 (XPTQ2 Guide) No. E207860

Meets CSA Standard C22.2 No. 66-209651 file

Compliant with standard 61558-2-4 CEIC according to EC





Applications


Industrial






Contents

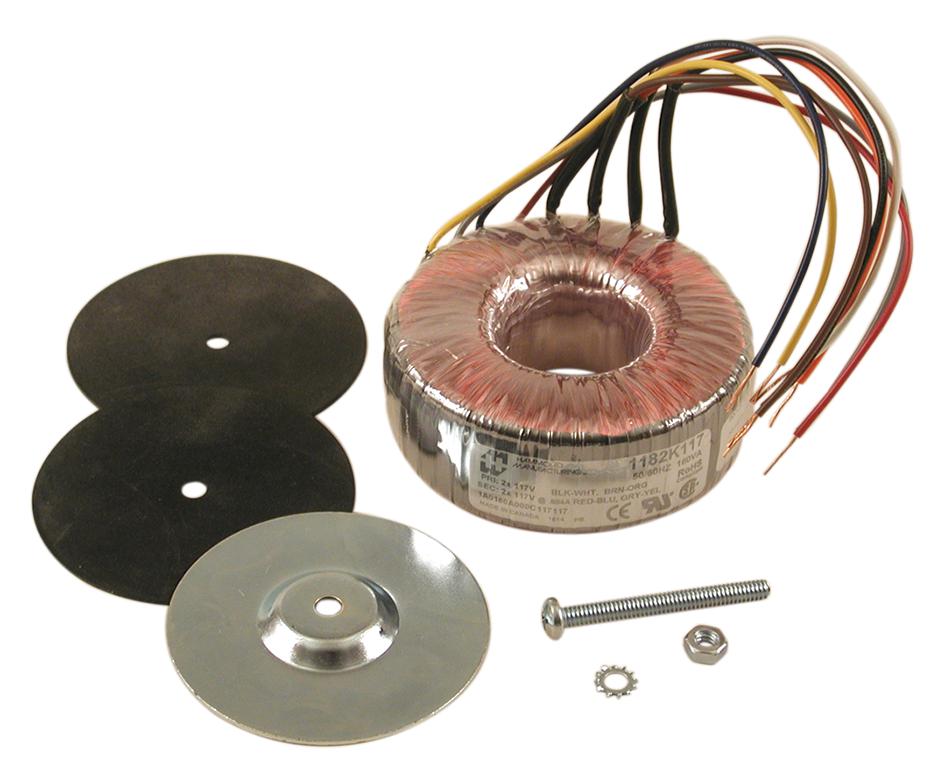

Toroidal transformer, 2x Rubber washer (0.062" T x 3.75" OD), 1x Steel mounting washer (16GA x 3.56" OD), 1x 1/4-20 Bolt (2.50") with a Lockwasher and 1/4-20 Hex nut.

img 1182H240_Hammond-Manufacturing.jpg View
1182H240
Datasheet
[pdf]
SourcePart NoStockInv DateQty/Price USDBuy/RFQ
Newark1182H2401004-20-2024Unit price: $81.79
Authorized Distributors
Powell Electronics1182H240604-20-2024Unit price: $74.39
Authorized Distributors
Digi-Key Electronics1182H240104-20-2024Unit price: $78.89
Authorized Distributors

Specifications for Hammond Manufacturing 1182H240

Frequently Asked Questions

Where can I buy Hammond Manufacturing 1182H240?

You can click on the BUY or RFQ button to purchase 1182H240 from an authorized Hammond Manufacturing distributor.

How do I troubleshoot issues or seek technical support for part 1182H240?

You can download the 1182H240 datasheet or Visit the Hammond Manufacturing website for support.

Who is the manufacturer of 1182H240?

Hammond Manufacturing
