Hammond Manufacturing 1182M240 Datasheet & Stock

The 1182M240 is a Toroidal Power Transformer made of class B material with dual primary and single secondary.




Compact

Lightweight

Operation without heating/high efficiency

Low loss by diffusion of magnetic flux (low EMI)

Primary dual 117/234VAC, 50/60Hz

Flexible conductors of at least 8" long

Dielectric test 4000VAC RMS between the primary and the secondary

Complies with UL 506 (XPTQ2 Guide) No. E207860

Meets CSA Standard C22.2 No. 66-209651 file

Compliant with standard 61558-2-4 CEIC according to EC





Applications


Industrial






Contents

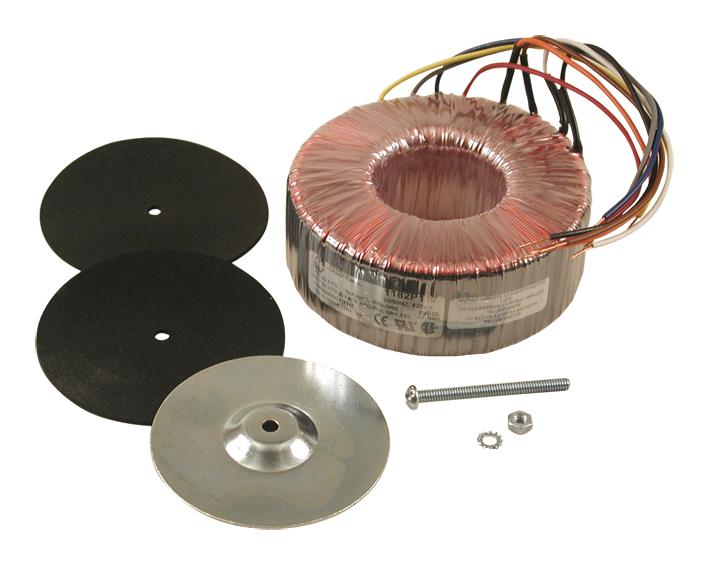

Toroidal transformer, 2x Rubber washer (0.093" T x 4.75" OD), 1x Steel mounting washer (16GA x 4.3" OD), 1x 1/4-20 Bolt (3") with a Lockwasher and 1/4-20 Hex nut.
