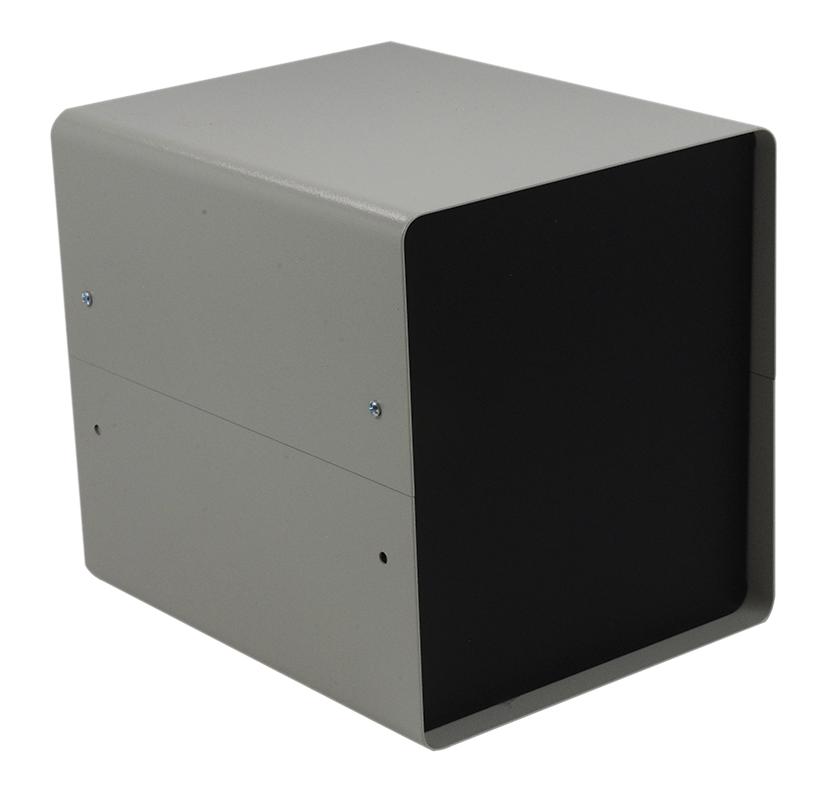

Hammond Manufacturing 1401C industrial enclosure
The enclosure is a sturdy and painted steel housing designed for electronic components. It features durable 20-gauge steel with a powder-coated finish in RAL 7032, ensuring corrosion resistance. The enclosure includes two aluminum panels, painted in RAL 7011 at the rear and RAL 7032 at the front, with eight nickel-plated screws securing the panels. It also has four self-adhesive rubber feet for stability. The construction supports customization like milling, drilling, or printing, and is available in solid models for precise fit and assembly. Overall, a reliable solution for protecting electronic devices.
Hammond Manufacturing 1401C industrial enclosure Specifications:
- Material: 20-gauge steel
- Finish: Powder-coated in RAL 7032
- Rear Panel Color: RAL 7011
- Front Panel Color: RAL 7032
- Panel Thickness: 0.064 inches (1.63 mm)
- Number of Screws: Eight 6-32 nickel-plated screws
- Additional Screws: Four 6-32 x 1/4 sheet metal screws
- Rubber Feet: Four self-adhesive feet
- Enclosure Dimensions: approximately 254.00 mm x 120 mm x 203.20 mm (varies slightly based on model)
- Construction: Fully customizable, can include milling, drilling, printing
- Available in solid models for CAD integration (STEP or IGES)
- Suitable for electronic housings in industrial applications
- Enclosures can be painted in various colors upon request
Buy the Hammond Series Enclosure: 1401C
Enhance your electronic project with the Hammond Series 1401C enclosure, crafted from durable steel and featuring a powder-coated finish. Designed for protection and flexibility, it includes aluminum panels painted in RAL 7011 and RAL 7032, respectively. Easy to assemble with nickel-plated screws and equipped with rubber feet for stability. Fully customizable with options for milling, drilling, or printing to match specific requirements. Ideal for industrial and electronic device housings, this enclosure blends robustness with versatility for reliable performance.
Order your Hammond Series 1401C enclosure today and give your electronic projects the durable and customizable protection they need.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1401C?
You can click on the BUY or RFQ button to purchase 1401C from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1401C?
You can download the 1401C datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1401C?
Hammond Manufacturing
