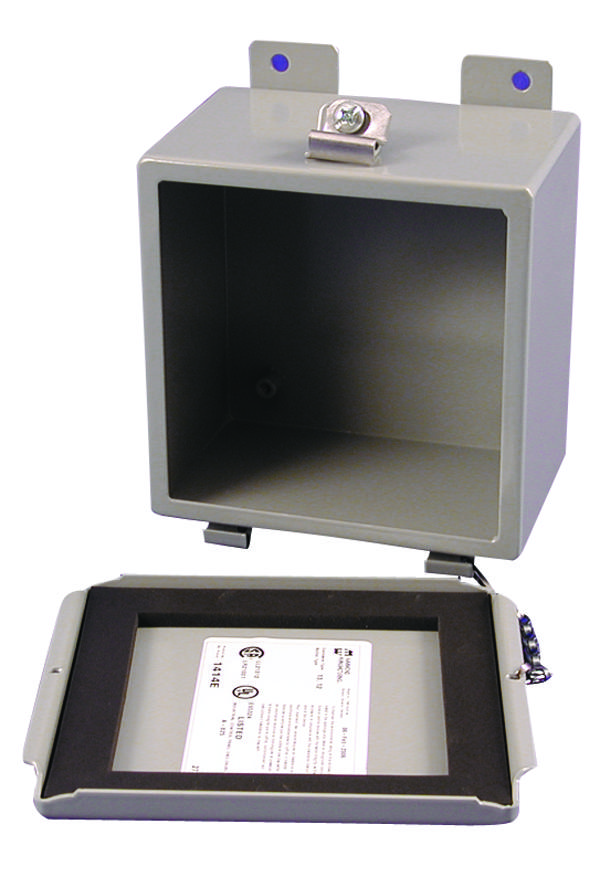

Hammond Manufacturing 1414A Steel Junction Box
The Type 12 Mild Steel Junction Box from the 1414 Series provides a durable, UL 508 Type 12 and 13 compliant enclosure for electrical, hydraulic, or pneumatic control systems. Made from 16 or 14 gauge steel, it features seamless welded seams, a lift-off cover secured with stainless steel clamps, and a poured-in-place gasket for protection against dirt, dust, oil, and water. The enclosure includes a removable inner panel, welded mounting brackets, and grounding hardware. Finished in ANSI 61 gray powder coating, it ensures longevity and corrosion resistance for industrial applications.
Hammond Manufacturing 1414A Steel Junction Box Specifications:
- Material: 16 or 14 gauge steel
- Finish: ANSI 61 gray powder coating
- Standards: UL 508 Type 12 and 13, CSA Type 12 and 13, IEC 60529 IP54
- Construction: Seamless welded seams, poured-in-place gasket
- Inner Panel: Removable, 14 gauge steel with white finish
- Enclosure Size Options: Ranging from 4" x 4" to 16" x 14"
- Grounding: Bonding stud and grounding stud included
- Clamps: Stainless steel clamps with plated screws
- Mounting: Welded brackets for secure installation
Buy the Buy Hammond Type 12 Mild Steel Junction Box 1414 Series Online
Enhance your electrical and control system protection with our high-quality steel junction box. Designed to meet UL 508 Type 12 and 13 standards, it features welded seams, a secure lift-off cover, and corrosion-resistant powder coating. The included removable inner panel allows for customizable wiring. Suitable for multiple industrial environments, it provides reliable dust, dirt, oil, and water protection. Easy to install with welded brackets, grounding hardware, and stainless steel clamps, this durable enclosure ensures long-term performance and safety for your electrical projects.
Order your Hammond Series 1414 junction box today and ensure reliable protection for your electrical and pneumatic controls.
