Hammond Manufacturing 1414I Datasheet & Stock

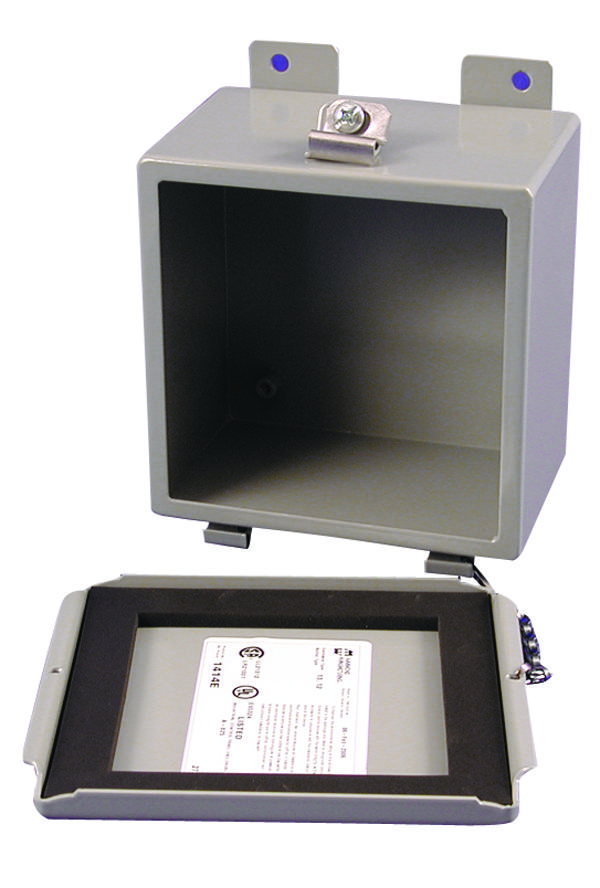

The 1414I is a clamped Enclosure with lift off cover designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides a degree of protection from falling dirt, dust, oil and water. The cover and enclosure are phosphatized and finished in ANSI 61 grey recoatable powder coating. Lift off cover is secured with stainless steel clamps and plated steel screws and retained with a plated chain when open.




IP54, NEMA-12, 13 Protection rating

16 or 14 gauge steel body

14 gauge steel cover

Smooth, continuously welded seams without knockouts, cut-outs or holes

Welded brackets provide for enclosure mounting

Seamless poured-in place gasket

Internal threaded weld studs are provided for mounting inner panels

A bonding stud is provided on the door and a grounding stud is provided in the enclosure

Removable inner panel is finished in white powder coating





Applications


Industrial
