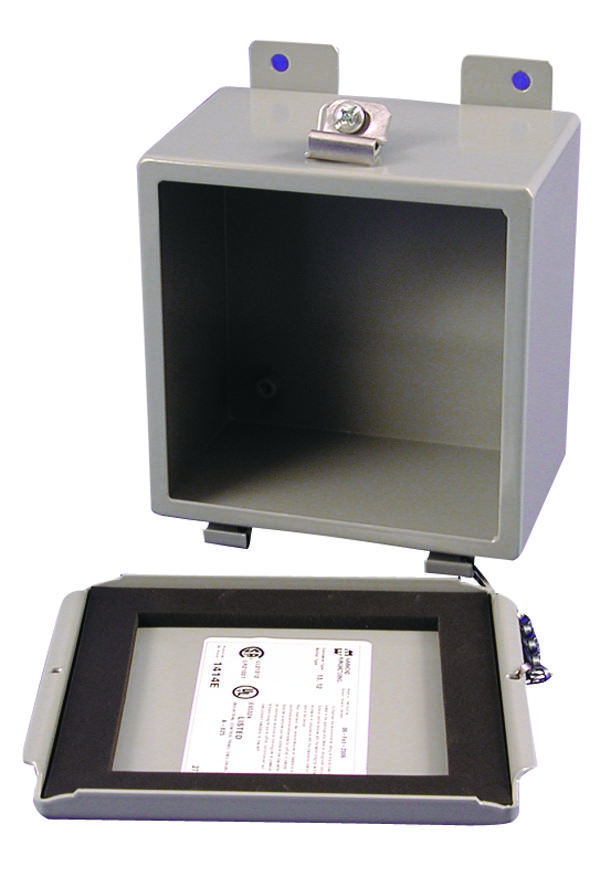

Hammond Manufacturing 1414K industrial control enclosure
The 1414K is a sturdy, clamp-style enclosure designed for protecting instrumentation, electrical, hydraulic, or pneumatic control components. It features a lift-off cover secured with stainless steel clamps and plated steel screws, and includes a retaining chain when open. Made from 16 or 14 gauge steel with a smooth, welded construction, it offers IP54 and NEMA 12/13 protection ratings, safeguarding against falling dirt, dust, oil, and water. The enclosure has phosphatized surfaces finished with ANSI 61 grey powder coating, welded mounting brackets, a seamless poured-in-place gasket, internal threaded weld studs for inner panel mounting, and bonding as well as grounding studs. It also includes a removable inner panel with a white powder-coated finish, suitable for industrial applications.
Hammond Manufacturing 1414K industrial control enclosure Specifications:
- Body formed from 16 gauge or 14 gauge steel
- Cover made from 14 gauge steel with seamless poured-in-place gasket
- IP54 and NEMA 12/13 rated enclosure
- Lift-off cover secured with stainless steel clamps and plated steel screws
- Includes a removable inner panel with white powder coating
- Mounting brackets welded to enclosure for easy installation
- Finished with ANSI 61 gray powder coating for corrosion resistance
- Internal threaded weld studs for inner panel mounting
- Bonding and grounding studs provided for electrical safety
- Overall dimensions vary based on model, with specific sizes up to 16x14 inches
- Designed for protection against dirt, dust, oil, and water in industrial environments
- Suitable for electrical, hydraulic, pneumatic control housings and junction boxes
Buy the Hammond 1414K – Reliable Industrial Enclosure for Control Applications
Purchase the Hammond 1414K enclosure online today to benefit from durable steel construction, IP54 and NEMA 12/13 ratings, seamless gasket sealing, and a removable inner panel. Perfect for safeguarding electrical, hydraulic, or pneumatic control components in demanding industrial environments. Featuring a lift-off cover secured with stainless steel clamps, mounting brackets, bonding and grounding studs, and a sleek ANSI 61 gray powder finish, this enclosure offers reliable protection against dirt, dust, oil, and water. Secure your control systems with this high-quality, easy-to-install enclosure now.
Order your Hammond 1414K industrial enclosure today and ensure your instrumentation and control components are protected with quality craftsmanship.
