Hammond Manufacturing 1414PHKC4 Datasheet & Stock

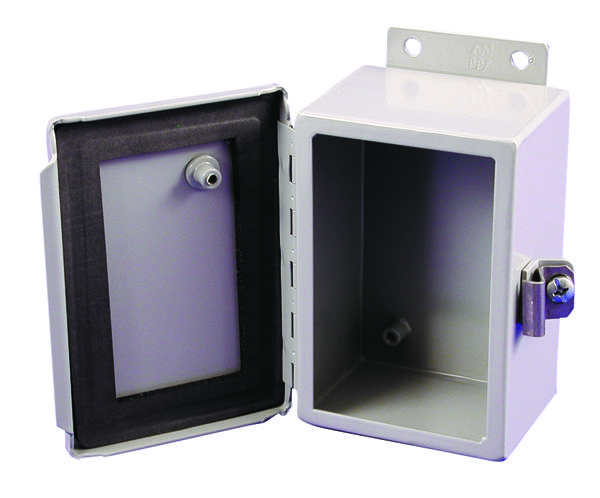

The 1414PHKC4 is a continuous hinge door Enclosure with clamped cover. It is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides a degree of protection from falling dirt, dust, oil and water. The cover and enclosure are phosphatized and finished in ANSI 61 grey recoatable powder coating. It has removable inner panel finished in white powder coating.




NEMA-12, 13 Protection rating

16 or 14 gauge steel body

Smooth, continuously welded seams without knockouts, cut-outs or holes

Welded brackets provide for enclosure mounting

Continuously hinged cover is secured with stainless steel clamps and plated steel screws

Seamless poured-in place gasket

A bonding stud is provided on the door and a grounding stud is provided in the enclosure

Internal threaded weld studs are provided for mounting inner panels





Applications


Industrial
