Hammond Manufacturing 1414SCK Datasheet & Stock

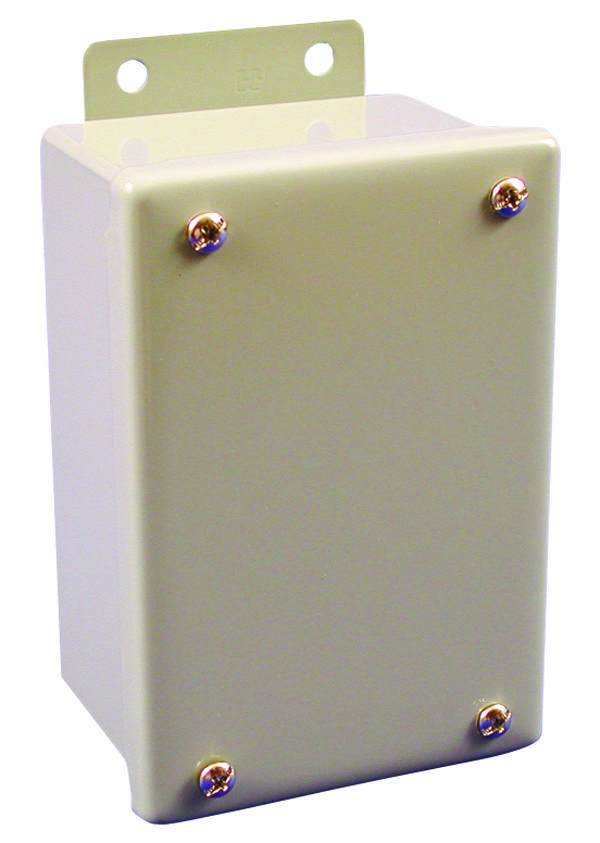

The 1414SCK is a lift-off mild steel Junction Box with screw cover. It is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides a degree of protection from falling dirt, dust, oil and water. The cover and enclosure are phosphatized and finished in ANSI 61 grey recoatable powder coating. The removable inner panel is finished in white powder coating.




NEMA-12, 13 Protection rating

16 or 14 gauge steel body

14 gauge steel cover

Smooth, continuously welded seams without knockouts, cut-outs or holes

Welded brackets provide for enclosure mounting

Cover is secured with captive, plated steel screws, threaded into sealed wells

Oil resistant gaskets are permanently secured

Internal threaded weld studs are provided for mounting inner panels

A bonding stud is provided on the door and a grounding stud is provided in the enclosure

Removable inner panel is finished in white powder coating





Applications


Industrial
