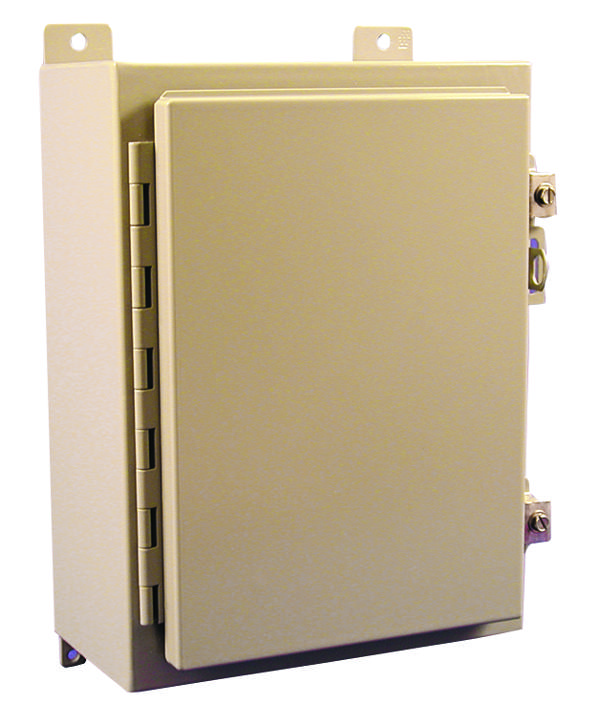

Hammond Manufacturing 1418B8 Industrial Control Enclosure
The 1418B8 is a wall-mounted, single-door enclosure designed for industrial control housed in electrical, hydraulic, and pneumatic systems. Made from formed 14-gauge steel, it features smooth welded seams without knockouts for durability. The enclosure provides IP54 protection and meets NEMA-12/13 standards, offering resistance to dirt, dust, oil, and water. Finished with ANSI 61 grey powder coating externally and white internally, it includes a bonding stud on the door, a grounding stud, and a removable inner panel. Its continuous hinge, stainless steel clamps, and optional accessories optimize functionality in harsh environments.
Hammond Manufacturing 1418B8 Industrial Control Enclosure Specifications:
- Material: Formed 14-gauge steel
- Finish: ANSI 61 grey powder coating exterior, white powder coating interior
- Protection: IP54, NEMA 12 and 13 compliant
- Seam Construction: Smooth, welded seams without knockouts
- Door: Continuous hinge, removable with hinge pin
- Securing: Stainless steel clamps with padlocking provision
- Gaskets: Oil-resistant, permanently secured
- Inner Panel: Removable 12 gauge with collar studs
- Bonding and Grounding: Bonding stud on door, grounding stud inside
- Mounting: Welded brackets for enclosure mounting
- Application: Electrical, electronic, hydraulic, pneumatic controls
- Dimensions and Weight: Variable depending on model, e.g., Part No 1418B8 approximately 16.00 x 12.00 x 8.00 inches, 28 lbs
Buy the Buy Hammond Wallmount Enclosure Part Number 1418B8 Online
Secure your electrical, hydraulic, or pneumatic controls with the Hammond industrial control enclosure. Crafted from durable steel with IP54 protection, it offers excellent resistance to dust, oil, and water. Featuring a continuous hinge, stainless steel clamps, and a removable inner panel, this enclosure ensures easy maintenance and reliable operation in demanding environments. Its robust construction guarantees long-term reliability, making it ideal for industrial, manufacturing, and automation applications. Order online today to safeguard your control components efficiently and effortlessly.
Buy Hammond 1418B8 now and experience unmatched durability and protection for industrial control systems.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1418B8?
You can click on the BUY or RFQ button to purchase 1418B8 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1418B8?
You can download the 1418B8 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1418B8?
Hammond Manufacturing
