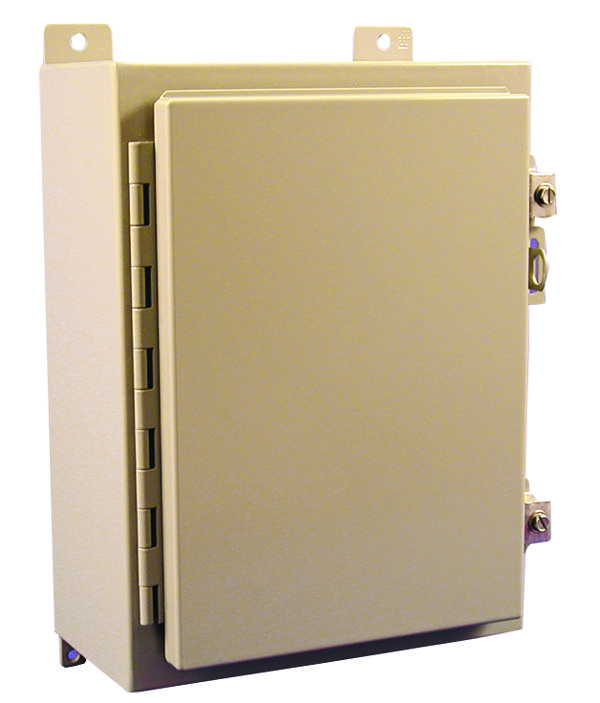

Hammond Manufacturing 1418C6 Wallmount Enclosure
The 1418C6 is a single-door, wall-mounted enclosure with a continuous hinge and a clamped cover. It is designed to house electrical, electronic, hydraulic, or pneumatic control equipment. The enclosure offers protection against dirt, dust, oil, and water, with an IP54 and NEMA 12/13 rating. Constructed from formed 14-gauge steel, it features smooth, welded seams without knockouts or holes. The enclosure includes door and body stiffeners for added rigidity, welded mounting brackets, and a formed lip to prevent ingress of liquids and contaminants. The door can be removed by pulling the hinge pin and is secured with stainless steel clamps that facilitate padlocking. It has permanently installed oil-resistant gaskets and provides a bonding stud on the door and a grounding stud inside for electrical safety. An optional removable 12 AWG gauge inner panel with collar studs is available for interior mounting, along with a literature pocket on the door for documentation.
Hammond Manufacturing 1418C6 Wallmount Enclosure Specifications:
- Material: Formed 14 gauge steel
- Finish: Recoatable smooth ANSI 61 gray powder coating outside, white inside
- Ingress Protection: IP54 (IEC 60529)
- Standards: UL 508 Type 12 and 13, CSA Type 12 and 13
- NEMA Rating: Type 12 and 13
- Seams: Smooth, welded, without knockouts or holes
- Door Type: Continuous hinge with removal option
- Door Securing: Stainless steel clamps with provision for padlocking
- Gaskets: Oil resistant, permanently secured
- Inner Panel: Removable 12 gauge with collar studs
- Mounting: Welded brackets included
- Surface Coating: Outside gray powder coating, inside white powder coating
- Size: A = 20.00 inches, B = 16.00 inches, c = 6.00 inches, suitable for small to medium control applications
- Additional features: Bonding and grounding studs, literature pocket
Buy the Hammond 1418C6 – Reliable Control Enclosure for Industrial Applications
Enhance your control installation with the Hammond 1418C6 enclosure, crafted from durable steel with smooth powder coating for corrosion resistance. Its IP54 rating ensures protection against dust and water ingress, making it ideal for industrial settings. Featuring a continuous hinge door secured with stainless steel clamps, it simplifies installation and maintenance. The enclosure includes a removable inner panel for versatile internal configuration and safety grounding studs for electrical safety. Choose this robust, weather-resistant enclosure to safeguard your control and automation equipment reliably in demanding environments.
Order your Hammond Series 1418C6 enclosure today and equip your control panels with a durable, IP54-rated steel enclosure designed for demanding industrial environments.
