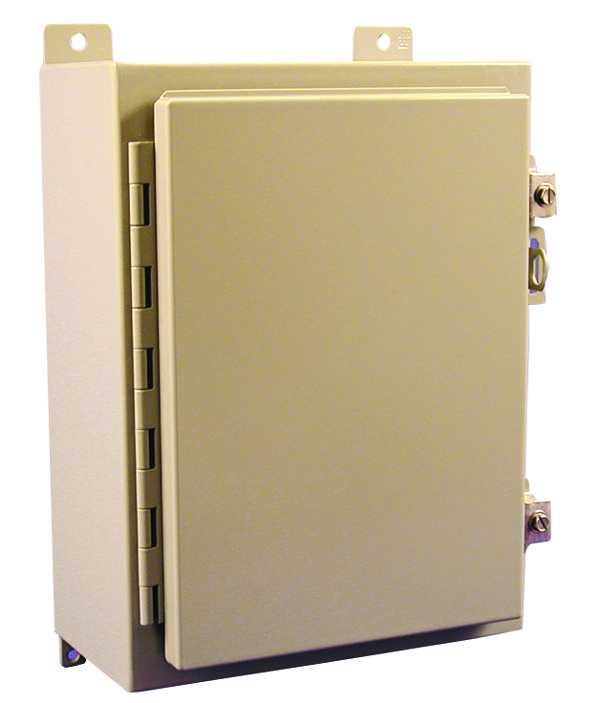

Hammond Manufacturing 1418H8 Wallmount Enclosure
The 1418H8 is a wall-mount, single-door enclosure with a continuous hinge and a clamped cover. Crafted from formed 14-gauge steel, it is designed to house electrical, electronic, hydraulic, or pneumatic controls and instruments. The enclosure offers protection against dirt, dust, oil, and water, with a rating of IP54 and NEMA 12 and 13. It features smooth, weld-sealed seams without knockouts, cut-outs, or holes, ensuring durability and integrity. The larger models include door and body stiffeners for added rigidity, and welded brackets facilitate mounting. The door has a formed lip to prevent ingress of liquids and contaminants and can be removed easily by pulling the hinge pin. It is secured with stainless steel clamps and includes provisions for padlocking. The enclosure is finished with a recoatable, smooth ANSI 61 grey powder coating externally and a white finish internally, with a bonding stud on the door and a grounding stud inside. An optional removable 12 AWG gauge inner panel with collar studs allows internal mounting, and a literature pocket is provided inside the door for documentation. Suitable for industrial applications, this enclosure offers robust protection and flexible configuration options.
Hammond Manufacturing 1418H8 Wallmount Enclosure Specifications:
- Material: Formed 14 gauge steel
- Finish: Recoatable smooth ANSI 61 gray powder coating outside, white powder coating inside
- Protection: IP54, NEMA 12 and 13
- Seams: Welded, smooth, without knockouts or holes
- Door: Continuous hinge, removable with hinge pin pull
- Security: Stainless steel clamps, padlock provision
- Inner Panel: Removable 12 gauge, with collar studs
- Bonding and Grounding: Studs provided on door and inside enclosure
- Application: Electrical, electronic, hydraulic, pneumatic controls and instruments
- Construction: Rigid, with stiffeners in larger models, welded brackets for mounting
- Accessories: Literature pocket, optional inner panels and ventilation components
Buy the Hammond Series 1428 Electrical Enclosure: 1418H8
Order the Hammond Series 1428 Wallmount Enclosure 1418H8 online today to secure durable, IP54-rated protection for your electrical and control systems. Designed from formed 14-gauge steel, it features a continuous hinge, stainless steel clamps, and provisions for padlocks, ensuring security and reliability. The enclosure's coat finish offers corrosion resistance, while optional inner panels and accessories enhance its versatility for industrial applications. Easy to install, with welded seams and rigid construction, this enclosure guarantees protection from dirt, dust, oil, and water. Elevate your control system setup now with streamlined online purchasing.
Buy Hammond Series 1428 1418H8 steel wallmount enclosure now and experience unmatched robustness, excellent protection, and flexible configuration for industrial controls.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1418H8?
You can click on the BUY or RFQ button to purchase 1418H8 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1418H8?
You can download the 1418H8 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1418H8?
Hammond Manufacturing
