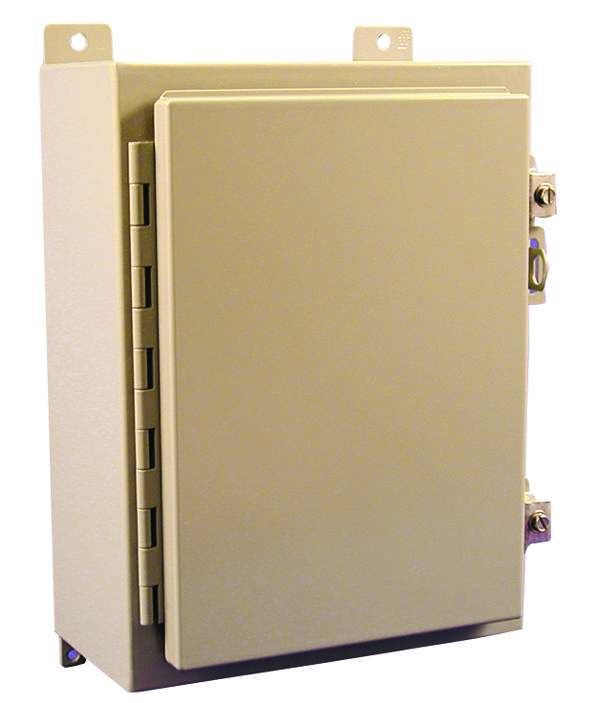

Hammond Manufacturing 1418J12 Industrial Steel Enclosure
The Type 12 Mild Steel Wallmount Enclosure from the 1428 Series by Hammond Manufacturing is designed to protect electrical, electronic, hydraulic, and pneumatic controls and instruments. Crafted from 14 gauge steel with a smooth, welded seam construction, it features a continuous hinge door secured with stainless steel clamps, oil-resistant gaskets, and a removable inner panel for easy access. The enclosure offers protection against dirt, dust, oil, and water, with finishes in ANSI 61 gray powder coating exterior and white interior. Suitable for industrial environments, it includes mounting brackets, bonding and grounding studs, and optional accessories for ventilation, cooling, and locking.
Hammond Manufacturing 1418J12 Industrial Steel Enclosure Specifications:
- Material: Formed 14 gauge steel
- Finish: ANSI 61 gray powder coating outside, white powder inside
- Construction: Smooth, welded seams, no knockouts or holes
- Door: Continuous hinge, secured with stainless steel clamps
- Inner Panel: Removable 12 gauge, powder coated white
- Protection: UL 508 Type 12 and 13, CSA Type 12 and 13, NEMA Type 12 and 13, IEC IP54
- Mounting: Welded brackets, collar studs for inner panels, bonding and grounding studs
- Sealing: Oil resistant gasket, gasket secured permanently
- Optional Accessories: Cooling, ventilation, locks, mounting hardware
- Dimensions & Weight: Vary by part number, e.g., Part No. 1418J12 measures 20.00 x 16.00 inches, weighs 68 lbs
Buy the Hammond Series 1428 Type 12 Steel Wallmount Enclosure: 1418J12
Purchase the Hammond Series 1428 Type 12 steel wallmount enclosure 1418J12 online today and secure reliable protection for your electrical and control panels. Made from durable 14 gauge steel with a seamless welded construction, it features a continuous hinge door secured with stainless steel clamps and oil-resistant gaskets for a tight seal. Finished in ANSI 61 gray powder coating, it offers protection against dirt, oil, water, and dust, ensuring your equipment stays safe in demanding environments. Easy to install and customize with optional accessories, this enclosure is essential for industrial control needs.
Order your Hammond Series 1428 Type 12 steel wallmount enclosure 1418J12 today and ensure your control systems are protected with premium quality industrial enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1418J12?
You can click on the BUY or RFQ button to purchase 1418J12 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1418J12?
You can download the 1418J12 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1418J12?
Hammond Manufacturing
