Hammond Manufacturing 1418J8 Datasheet & Stock

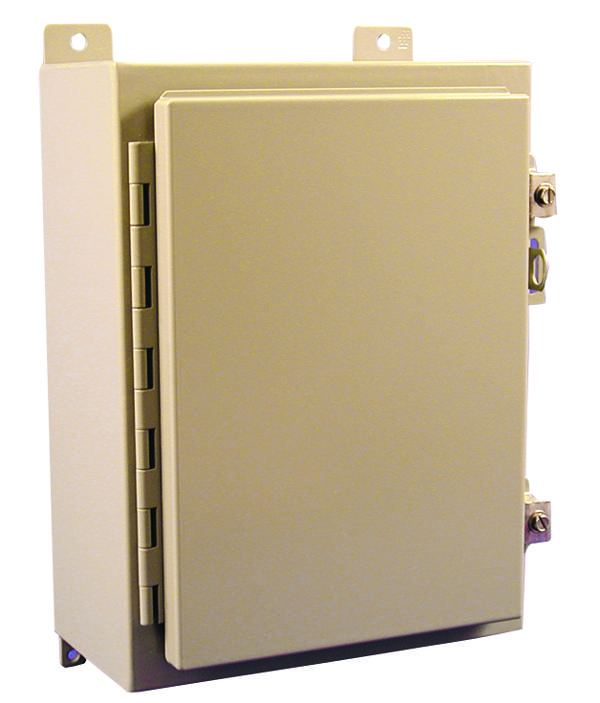

The 1418J8 is a single door continuous hinge wall-mount Enclosure with clamped cover. It is designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. It provides a degree of protection from falling dirt, dust, oil and water. The cover and enclosure are finished in recoatable smooth ANSI 61 grey powder coating on the outside, with white powder coating on the inside. It has a bonding stud is provided on the door and a grounding stud is provided in the enclosure.




IP54, NEMA-12, 13 Protection rating

Formed 14 gauge steel bodies and doors

Smooth, continuously welded seams without knockouts, cut-outs or holes

Door and body stiffeners are provided in the larger enclosures for extra rigidity

Welded brackets provide for enclosure mounting

Formed lip on door and enclosure exclude flowing liquids and contaminants

Continuously hinged door may be removed by pulling the hinge pin

Door is secured with easily operated stainless steel clamps

Provision for padlocking

Oil resistant gaskets are permanently secured





A removable 12AWG gauge inner panel

Collar studs are provided for mounting inner panels

A literature pocket is provided for the inside of the door





Applications


Industrial
