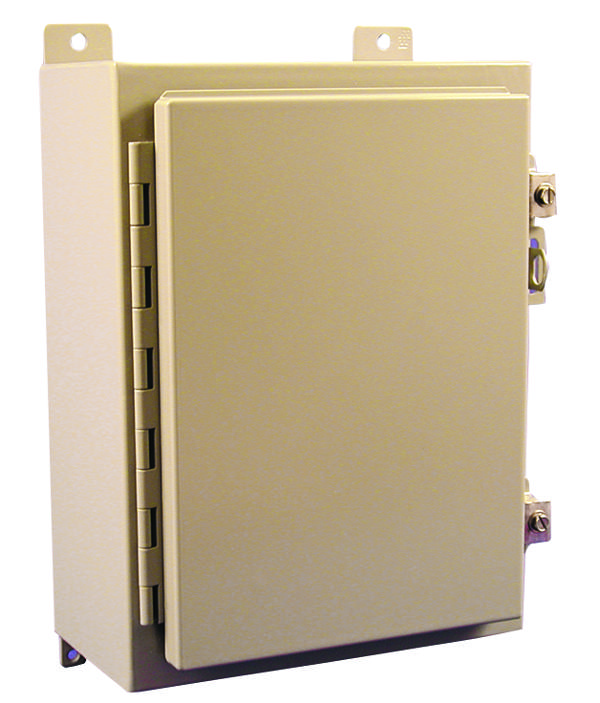

Hammond Manufacturing 1418M8 Industrial Control Enclosure
The 1428 Series Type 12 Mild Steel Wallmount Enclosure offers reliable protection for electrical, electronic, hydraulic, and pneumatic controls. Constructed from 14 gauge steel with smooth, welded seams, the enclosure features a continuous hinge door secured with stainless steel clamps and an oil-resistant gasket for enhanced sealing. Designed to meet UL 508 Type 12 and 13 standards, it provides protection against falling dirt, dust, oil, and water, with a powder-coated finish inside and out. Multiple sizes and accessories support diverse installation needs, ensuring durability and easy maintenance in industrial environments.
Hammond Manufacturing 1418M8 Industrial Control Enclosure Specifications:
- Material: 14 gauge steel
- Finish: ANSI 61 gray powder coating exterior, white powder coating interior
- Construction: Welded seams, smooth surfaces, continuous hinge door
- Door Securing: Stainless steel clamps with provision for padlocking
- Gasket: Oil-resistant, permanently secured sealing gasket
- Inner Panel: Removable 12 gauge steel inner panel with collar studs
- Standards: UL 508 Type 12 and 13, CSA Type 12 and 13, IEC IP54
- Dimensions: Varies with size, typical size 16x20 inches, weight ranges from 26 to 312 lbs
- Mounting: Welded brackets for secure installation
- Protection Level: NEMA Type 12 and 13, IEC IP54
- Additional Features: Literature pocket, bonding and grounding studs, optional accessories include fans, gaskets, and mounting kits
Buy the Hammond Series 1428 Enclosure: 1418M8
Purchase the Hammond Series 1428 industrial control enclosure online today to secure your electrical and pneumatic systems with durable steel protection. Designed with a continuous hinge door, stainless steel clamps, and oil-resistant gasket, this enclosure meets UL and CSA standards for Type 12 and 13. Featuring a powder-coated finish, removable inner panels, and various accessories, it offers flexibility for diverse industrial applications. Buy now to enhance safety, ease maintenance, and ensure lasting performance in demanding environments.
Order your Hammond Series 1428 enclosure in size 16x20 inches today and ensure dependable protection for your electrical controls and instruments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1418M8?
You can click on the BUY or RFQ button to purchase 1418M8 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1418M8?
You can download the 1418M8 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1418M8?
Hammond Manufacturing
