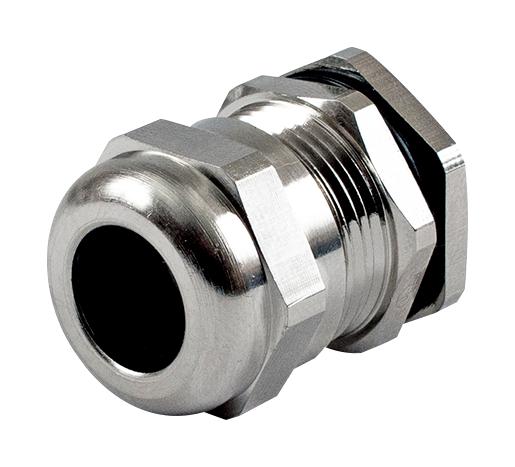

Hammond Manufacturing 1427BCGPG36 Liquid-Tight Cable Gland
Nickel-plated brass liquid-tight cordgrip designed for secure cable entry and exit in enclosures, meeting IP68 and NEMA standards. It accommodates various cable diameters with a robust nitrile rubber seal and strain relief features, ensuring outstanding strain relief without twisting or damage. Includes locknut and EPDM o-ring for reliable sealing. Suitable for ENclosures requiring protection levels NEMA 4, 4X, 6, 6P, 12, and 13, and UL listed for safety and durability in demanding environments. Ideal for industrial and electrical applications requiring waterproof cable ingress solutions.
Hammond Manufacturing 1427BCGPG36 Liquid-Tight Cable Gland Specifications:
- Material: Nickel plated brass
- Thread Sizes: PG9 (6-17 mm wire diameter), PG36 (22-32 mm wire diameter)
- Outer Length: 37 mm for PG36
- Inner Thread Length: 8 mm for PG36
- Sealing: NBR rubber seal, includes EPDM o-ring
- Protection Class: IP68, UL Listed, NEMA Type 4, 4X, 6, 6P, 12 & 13
- Applicable Cable Diameter Range: 22-32 mm (PG36), 4-21 mm (PG9)
- Locknut: Included
- Thread Type: PG Thread
- Features: Strain relief, waterproof ingress protection, compatible with a wide range of cable sizes
Buy the Hammond Series 1427BCG PG36: Liquid-Tight Cable Gland
Purchase the Hammond Series 1427BCG PG36 nickel-plated brass liquid-tight cordgrip online today. Designed for waterproof cable entry, it features a nitrile rubber seal, strain relief, and includes a locknut and EPDM o-ring for secure sealing. This cordgrip meets IP68 and NEMA standards, ensuring protection against dust, water, and harsh environments. Ideal for industrial applications, it accommodates cables with diameters from 22 to 32 mm, providing durability and reliability for critical electrical enclosures. Buy now for quality and safety assurance.
Order your Hammond Series 1427BCG PG36 nickel-plated brass liquid-tight cordgrip today and ensure reliable waterproof cable entry for your industrial enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1427BCGPG36?
You can click on the BUY or RFQ button to purchase 1427BCGPG36 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1427BCGPG36?
You can download the 1427BCGPG36 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1427BCGPG36?
Hammond Manufacturing
