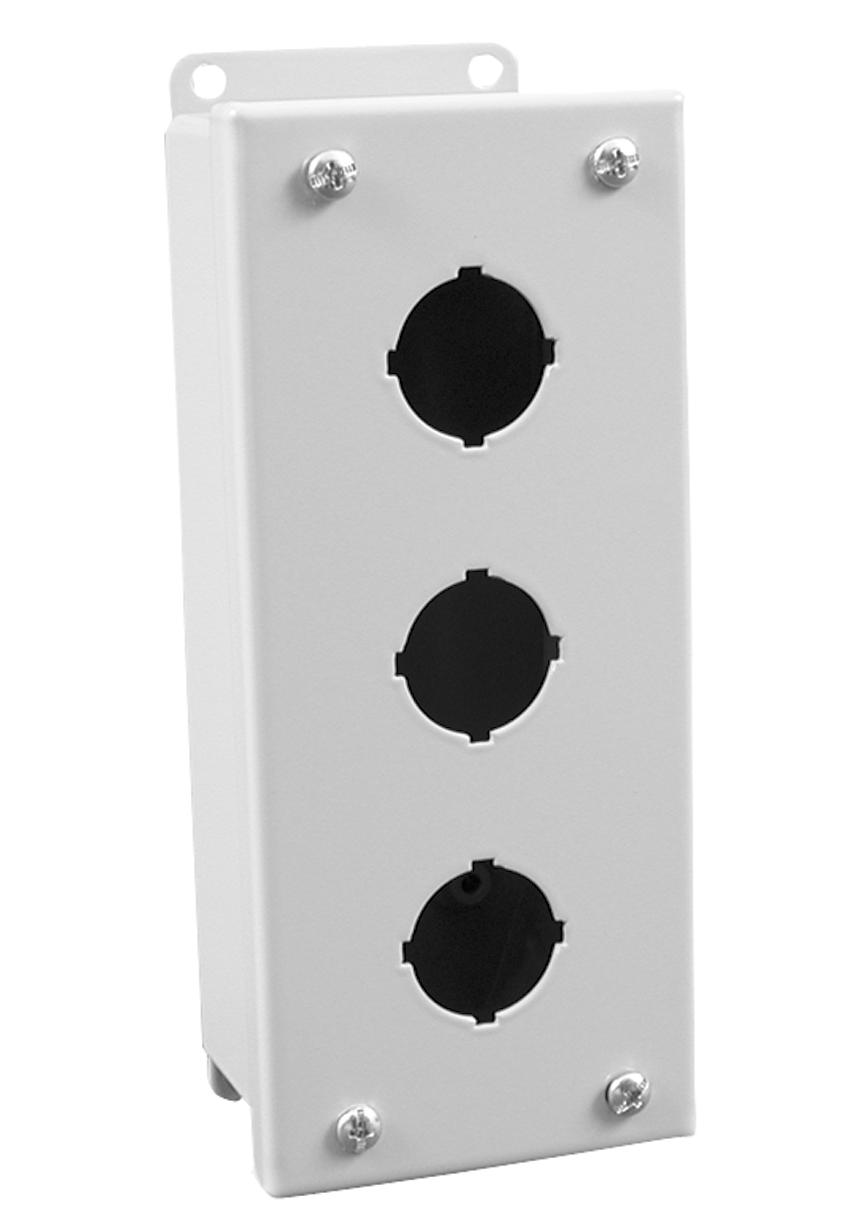

Hammond Manufacturing 1435D Heavy Duty Steel Enclosure
The 1435D series is a heavy-duty, NEMA Type 12 and 13 steel enclosure designed for protecting electrical components from dirt, dust, oil, and water. Constructed from 14-gauge steel with welded seams and finished in ANSI 61 gray powder coating, it features a bonded and grounding stud, oil-resistant gasket, and removable hinged cover for easy wiring access. Suitable for industrial settings, it complies with UL, CSA, and IEC standards, ensuring durability, corrosion resistance, and reliable enclosure protection for heavy-duty electrical applications.
Hammond Manufacturing 1435D Heavy Duty Steel Enclosure Specifications:
- Material: 14 gauge steel (except A and B which are 16 gauge)
- Finish: ANSI 61 gray powder coating
- Standards: UL 508 Type 12 and 13, CSA Type 12 and 13, IEC 60529 IP54, JIC EGP-1-1967
- Construction: Welded seams, oil-resistant gasket, bonded and grounding studs
- Features: Removable hinged cover, sealed wells, welded brackets for mounting
- Dimensions vary by model, with hole sizes from 2.25 inch to 11.75 inch, and overall dimensions listed per part number
- Suitable for heavy-duty electrical and control panel applications
- Additional accessories include hole plugs, pedestal bases, and ground wire kits
- Finish ensures resistance to environmental factors such as dust, water, and oil, suitable for industrial environments
Buy the Hammond Series 1435 Steel Enclosure: 1435D
Secure your electrical components with Hammond's heavy-duty steel enclosure. Designed for industrial environments, it offers excellent protection against dirt, dust, oil, and water. Constructed from durable 14-gauge steel with welded seams and finished in a corrosion-resistant powder coating, this enclosure features a hinged door for easy wiring access, bonded and grounding studs for safety, and complies with UL, CSA, and IEC standards. Ideal for industrial control panels and electrical applications requiring robust, reliable enclosures, available for purchase online for quick and convenient deployment.
Buy Hammond 1435D now and experience unmatched reliability and performance for industrial electrical protection.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1435D?
You can click on the BUY or RFQ button to purchase 1435D from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1435D?
You can download the 1435D datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1435D?
Hammond Manufacturing
