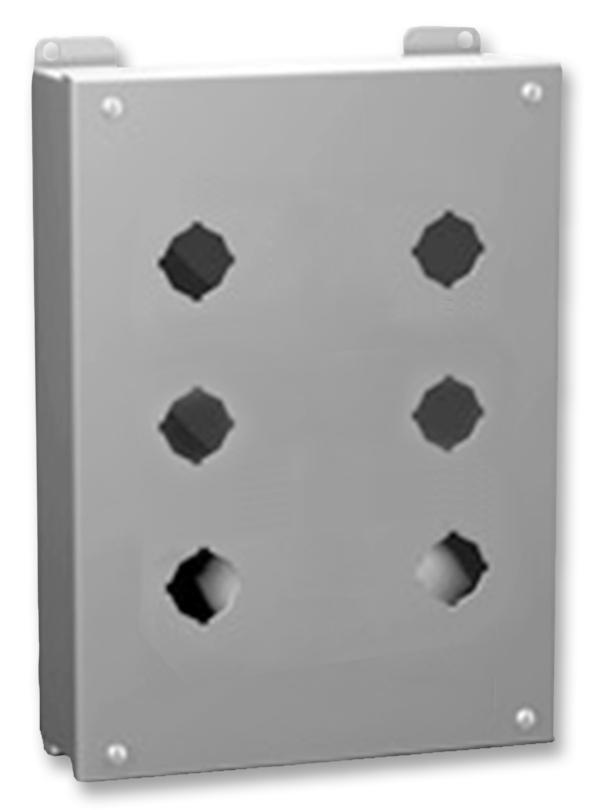

Hammond Manufacturing 1435H Industrial Control Enclosure
The 1435H is a rugged, Type 12 mild steel pushbutton enclosure designed for industrial control applications. Made from 14-gauge steel with welded seams, it provides excellent protection against dirt, dust, oil, and water, complying with UL 508, CSA, NEMA, IEC standards, and JIC specifications. Features include oil-resistant gasket, sealed welded seams, mounting brackets, and a phosphatized gray powder coating finish. Suitable for heavy-duty environments, it ensures safe enclosure of pushbuttons, switches, and pilot lights, with optional hinged, removable covers for wiring ease. Grounding studs are included for safety compliance.
Hammond Manufacturing 1435H Industrial Control Enclosure Specifications:
- Material: 14-gauge mild steel
- Finish: Phosphatized with ANSI 61 gray powder coating
- Standards: UL 508 Type 12 and 13, CSA Type 12 and 13, NEMA Type 12 and 13, IEC 60529 IP54, JIC EGP-1-1967
- Seams: Continuously welded
- Gasket: Oil resistant and sealed
- Mounting: Welded brackets, removable hinged covers (larger sizes)
- Grounding: Bonding and grounding studs included
- Type: Non-hinged and hinged door options available
- Construction Thickness: 14 gauge steel, 16 gauge for some parts
- Finish Color: ANSI 61 gray powder coating
- Protection Level: Dust, oil, water resistance
- Accessories: Hole plugs, pedestal bases, ground wire kits
Buy the Buy Hammond Enclosures Part Number 1435H Online
Enhance your control panel setup with this robust Hammond industrial control enclosure. Designed to meet rigorous standards, it offers superior protection against dust, water, and oil. Made from high-quality 14-gauge steel with a durable gray powder coating, this enclosure provides reliable housing for pushbuttons, switches, and pilot lights. Its welded construction, sealed gasket, and grounding studs ensure safety and longevity. Purchase this enclosure online today and enjoy a dependable, easy-to-install solution for industrial control applications that need rugged and compliant enclosures.
Order your Hammond Series1435MH steel pushbutton enclosure today and ensure your control components are protected in demanding industrial environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1435H?
You can click on the BUY or RFQ button to purchase 1435H from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1435H?
You can download the 1435H datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1435H?
Hammond Manufacturing
