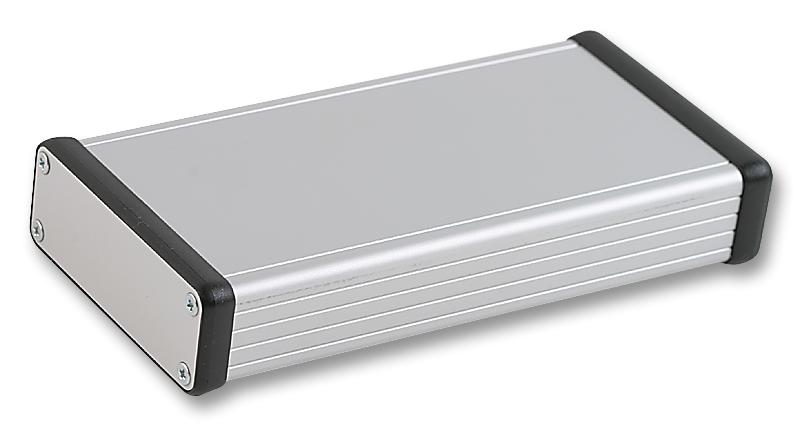

Hammond Manufacturing 1455J1601 Aluminum Enclosure
This extruded aluminum enclosure is designed for 75mm wide PC boards, offering customizable options such as milling, drilling, and printing. It features a sturdy construction with a clear or black anodized finish, ensuring durability and corrosion resistance. The enclosure includes optional flange end panels, plastic bezels, and is available in solid models in STEP or IGES formats. The box itself is made from extruded aluminum 6063 for robustness, making it suitable for electronic housing applications and industrial equipment requiring reliable mechanical protection.
Hammond Manufacturing 1455J1601 Aluminum Enclosure Specifications:
- Material: Extruded Aluminum 6063
- Board Width Compatibility: 75mm
- Finish Options: Clear Anodized, Black Anodized
- Overall Dimensions: Length approximately 160.00 mm, Width 78.00 mm, Height 64.02 mm
- End Plate Slot Details: 24.00 mm and 27.00 mm on width, 75.00 mm length for PC board slot
- End Plate Thickness: 1.50 mm
- Open Bezel Width: 89 mm, Diameter: 130.2 mm
- Optional Flange End Panels: Yes, Part Number 1455JF
- Made from Extruded Aluminum 6063, suitable for factory modifications
- Solid models available in STEP or IGES formats for customization
- Factory modifications available including milling, drilling, printing
- Includes box, plastic bezels, end panels, #6 Taptight screws, and adhesive rubber feet
Buy the Hammond Series Enclosure: 75mm Wide PC Board Housing 1455J1601
Enhance your electronics projects with this heavy-duty aluminum enclosure designed for 75mm wide PC boards. Featuring a robust extruded aluminum 6063 construction, it offers customizable options like milling, drilling, and printing. Easy to assemble with included screws and adhesive rubber feet, it ensures a secure fit and reliable protection. Available with optional flange end panels and anodized finishes for corrosion resistance and aesthetic appeal. Purchase online now for high-quality, durable enclosure solutions that meet industrial standards and tailored specifications.
Buy Hammond 1455J1601 now and experience unmatched durability and customization options for electronic and industrial enclosures.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1455J1601?
You can click on the BUY or RFQ button to purchase 1455J1601 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1455J1601?
You can download the 1455J1601 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1455J1601?
Hammond Manufacturing
