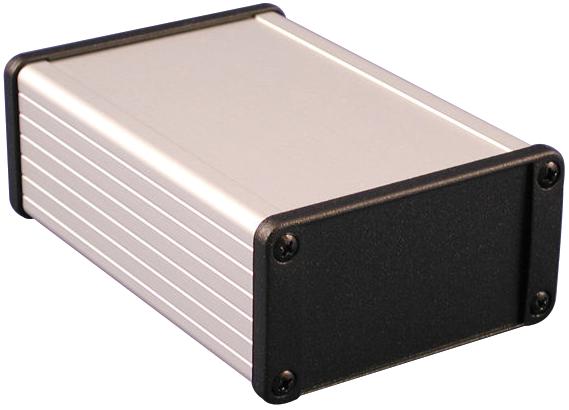

Hammond Manufacturing 1457J1201E Aluminum Enclosure
This EMI-RFI protection enclosure features extruded die-cast aluminum panels with a rugged, one-piece body made from 1.5mm thick aluminum. Designed for housing PC boards or equipment interfaces, it offers watertight integrity with full perimeter conductive foam/fabric gaskets made of Ni/Cu with a conductive pressure-sensitive adhesive. The enclosure is sized for standard Eurocards and includes a recessed area for labels or membrane keypads. PC boards can be mounted horizontally by sliding into internal slots, facilitating easy installation. Ideal for industrial applications, the package includes two die-cast aluminum end panels, external extruded aluminum body, conductive gaskets, self-adhesive feet, and an O-ring. The recommended screw torque is 5 lbf/in.
Hammond Manufacturing 1457J1201E Aluminum Enclosure Specifications:
- Material: Die-cast aluminum, 1.5mm thick
- Protection Rating: IP65
- Enclosure Size: Fits 120mm x 80mm PCBs
- Panel Dimensions: 131.15 mm x 66.00 mm x 45 mm
- Gasket Material: Ni/Cu conductive foam/fabric with adhesive
- Body: Extruded aluminum with full perimeter seal
- Includes: End panels, external body, self-adhesive rubber feet, O-ring
- Mounting: Horizontal slide-in slots for PC boards
- Screw Torque: 5 lbf/in
- Protection Level: Watertight, EMI-RFI shielding
- Additional Features: Recessed label/membrane keypad area, solid one-piece body
- Overall Length: 191.5 mm, Width: 66 mm, Height: 45 mm
Buy the Hammond 1457J1201E – Reliable Aluminum EMI-RFI Enclosure for Industrial Applications
Secure your industrial electronic components with this rugged aluminum EMI-RFI enclosure. Featuring IP65 protection, full gasket sealing, and easy mounting options, it ensures optimal shielding and durability. Designed to house 120mm x 80mm PCBs, the enclosure includes end panels, extruded body, conductive gaskets, and mounting accessories, providing excellent protection against environmental factors. Its recessed label area allows for easy identification. Ideal for industrial, automation, and control applications, this enclosure offers quick installation, reliable performance, and long-lasting protection for sensitive electronics.
Buy Hammond 1457J1201E now and experience unmatched reliability and performance in industrial PC board housing.
