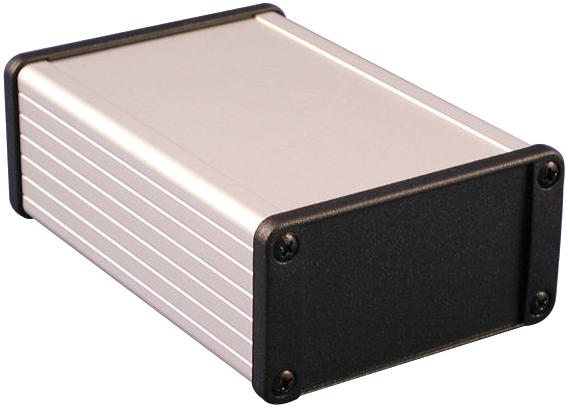

Hammond Manufacturing 1457L1201 IP65 Enclosure
This is a protective enclosure designed for electrical and electronic components, offering IP65 ingress protection against dust and water. It can be factory modified with milling, drilling, or printing to customize for specific applications. The enclosure features a recessed area for labels or keypads, includes end panels, screws with O-rings, rubber feet, and gaskets for secure sealing. Made from durable materials, it supports PCB sizes of 120mm by 100mm, ensuring safety and reliability in harsh environments. It is available in solid models in STEP or IGES formats for precise integration.
Hammond Manufacturing 1457L1201 IP65 Enclosure Specifications:
- Ingress Protection: IP65
- Material: Durable, likely polycarbonate or similar
- Enclosure Dimensions: 148.7 mm x 86.0 mm x 119.15 mm
- Panel Size Compatibility: 120mm x 100mm PCB
- Recess Depth: 0.75mm (.030") for labels/keypads
- Gasket Compression: 0.059 in
- End Panel Thickness: 2.00 mm
- Extrusion Length with Gaskets: 250 mm
- Manufactured options: Milling, drilling, printing available
- Includes: Box, end panels, screws with O-rings, rubber feet, gaskets
- Available formats: STEP, IGES
- Protection rating: IP65
- Design features: Factory modified options, solid models for customizations
- Dimensions: Length varies with option, typical depth 27.50+0/-0 mm, width 106.96 mm
- Temperature or electrical specifications not provided
Buy the Hammond Series IP65 Enclosure: 1457L1201
Order the Hammond 1457L1201 enclosure online today to ensure your electronic components are protected in harsh environments. Designed for durability, this IP65-rated enclosure is perfect for custom modifications such as milling, drilling, and printing. It includes essential features like gaskets, end panels, screws with O-rings, and rubber feet. Compatible with 120mm by 100mm PCBs, this enclosure guarantees safety, reliability, and easy integration, making it ideal for industrial, automation, or electronic control projects. Purchase now for fast delivery and superior protection.
Buy Hammond 1457L1201 now and experience unmatched reliability and performance with a durable, customizable IP65 protection enclosure.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1457L1201?
You can click on the BUY or RFQ button to purchase 1457L1201 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1457L1201?
You can download the 1457L1201 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1457L1201?
Hammond Manufacturing
