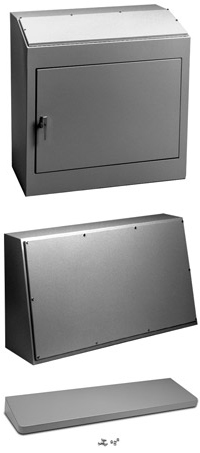

Hammond Manufacturing 147224 industrial control cabinet
The 1472 Series NEMA 12 Sloped Front Console Cabinet is a durable steel enclosure designed for electrical, electronic, hydraulic, or pneumatic control housing. It features a sloping front panel, removable inner panels, welded seams, and a gray powder coating finish, ensuring protection against dirt, dust, oil, and water compliance with NEMA 12 and IEC IP65 standards. The cabinet includes a lockable door, oil-resistant gaskets, and options for accessories like heaters and ventilating plates, making it suitable for industrial control applications with high protection requirements. Its robust construction enhances reliability and ease of maintenance.
Hammond Manufacturing 147224 industrial control cabinet Specifications:
- Material: formed 14 gauge steel
- Finish: ANSI 61 gray powder coating (outside and inside)
- Application: housing for electrical, electronic, hydraulic, pneumatic controls
- Standards: UL 508 Type 12, CSA Type 12, NEMA Type 12, IEC 60529 IP65
- Overall Dimensions: 20 inches length, 24 inches width, 40 inches height
- Door: solid steel with three point latch, lockable, with oil resistant gasket
- Inner Panel: removable, formed from 12 gauge steel, mounted at the back
- Hinged instrument panel: sloping, continuously welded, removable
- Accessories: options include heaters, ventilating plates, casters, window kits
- Construction: welded seams, sealed wells, captive panel screws, protective finish
- Physical features: collar studs for mounting, grounding studs, literature pocket
Buy the Hammond Series 1472 NEMA 12 Sloped Front Console Cabinet: 147224
Purchase the Hammond 147224 Series NEMA 12 Sloped Front Console Cabinet online today. Engineered with heavy-duty steel and a protective powder-coated finish, it offers reliable protection against dust, oil, and water, making it ideal for demanding industrial environments. Its sloped front design facilitates ease of control panel mounting, while the lockable door ensures safety. Compatible accessories like heaters, ventilating plates, and casters enhance functionality. Order now for trusted quality, durability, and seamless integration into your control system setup.
Get Hammond 147224 today—designed for durable, protected industrial control housing with removable panels and secure lockable door.
