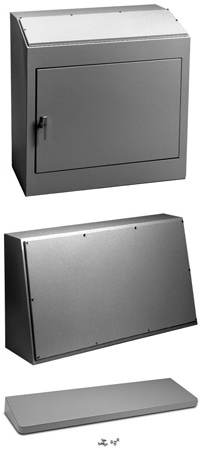

Hammond Manufacturing 147236 Industrial Console Cabinet
This sloped front modular console cabinet is constructed from durable steel with a gray powder-coated finish. Measuring 36 inches in length, 36 inches in width, and 36 inches in height, it provides robust protection against dirt, dust, oil, and water. The cabinet features a steel door with a three-point latch, removable inner panels, and a hinged instrument panel for easy access and maintenance. Designed in compliance with UL 508 Type 12, CSA Type 12, NEMA Type 12, and IEC 60529 IP65 standards, it is ideal for housing electrical, hydraulic, or pneumatic controls in industrial settings.
Hammond Manufacturing 147236 Industrial Console Cabinet Specifications:
- Material: Steel with gray powder coating
- Construction: Formed 14 gauge steel, welded seams, hinged instrument panel
- Dimensions: Length 36 inches, Width 36 inches, Height 36 inches
- Finish: ANSI 61 gray powder coating inside and outside
- Standards: UL 508 Type 12, CSA Type 12, NEMA Type 12, IEC 60529 IP65
- Door: Steel with three-point latch, key lock, oil resistant gasket
- Inner Panel: Removable, formed from 12 gauge steel, mounted to rear
- Ventilation: Fully sealed, solid design for dust and water protection
- Accessories: Optional air conditioners, heaters, casters, window kits
Buy the Hammond 147236 – Reliable Industrial Control Console Cabinet for Control Equipment
Purchase the Hammond 147236 steel console cabinet online today and enjoy reliable protection for your electrical, hydraulic, and pneumatic control systems. Crafted with high-quality steel and a durable gray powder coating, this cabinet features a sloped front for easy access, a secure three-point latch door, and a removable inner panel for efficient maintenance. Its construction meets strict industrial standards including UL 508 Type 12 and NEMA Type 12, making it suitable for diverse professional environments. Secure your controls with this robust, IP65-rated enclosure today for optimal safety and performance.
Order your Hammond Series147236 steel control console cabinet today and ensure maximum protection for your electrical and pneumatic controls in harsh industrial environments.
