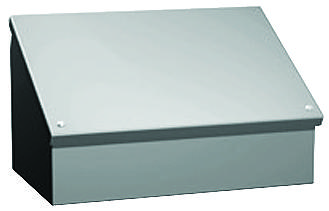

Hammond Manufacturing 1488HH9 Industrial control enclosure
The 1488HH9 is a hinged control enclosure crafted from 14-gauge steel, designed for electrical, hydraulic, or pneumatic control and instrumentation setups. It features a removable continuous hinge, sealed well-threaded captive screws, and an oil-resistant gasket with adhesive for protection against dirt, dust, oil, and water. The enclosure offers a dual control slope—either 30° or 60°—and includes grounding provisions such as a bonding stud and ground stud. Finished in ANSI 61 grey powder coating, it is ideal for demanding industrial environments requiring durable, easy-to-maintain enclosures.
Hammond Manufacturing 1488HH9 Industrial control enclosure Specifications:
- Material: 14 gauge steel
- Finish: ANSI 61 grey powder coating
- Construction: Smooth, welded seams
- Hinge: Continuous, removable by hinge pin
- Gasket: Oil-resistant with adhesive
- Protection: Dust, dirt, oil, and water resistant
- Mounting: Flat, surface, or pedestal
- Design: Dual control slope options of 30° or 60°
- Cover: Hinged, captive screws in sealed wells
- Grounding: Bonding stud on door, ground stud on enclosure
- Standards: UL508 Type 12, 13; CSA Type 12, 13; IEC 60529, IP54
Buy the Hammond 1488HH9 – Reliable Control Enclosure for Industrial Applications
Get the Hammond 1488HH9 control enclosure online today for a dependable solution to protect electrical, hydraulic, or pneumatic equipment. Crafted from durable 14-gauge steel and finished in ANSI 61 grey powder coating, it offers excellent resistance against dirt, dust, oil, and water. The hinged design features a removable continuous hinge, sealed well-threaded captive screws, and an oil-resistant gasket with adhesive for superior sealing. With grounding studs and compliance with UL and CSA standards, this enclosure is ideal for industrial control applications requiring durability and ease of maintenance. Purchase now for reliable, efficient equipment protection.
Order your Hammond 1488HH9 enclosure today and ensure your control panels are protected with our durable, high-quality enclosures suited for industrial environments.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1488HH9?
You can click on the BUY or RFQ button to purchase 1488HH9 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1488HH9?
You can download the 1488HH9 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1488HH9?
Hammond Manufacturing
